X332

Tesla Part Number
1496688-00-A
Connector
DELPHI 35126369
Color
BK

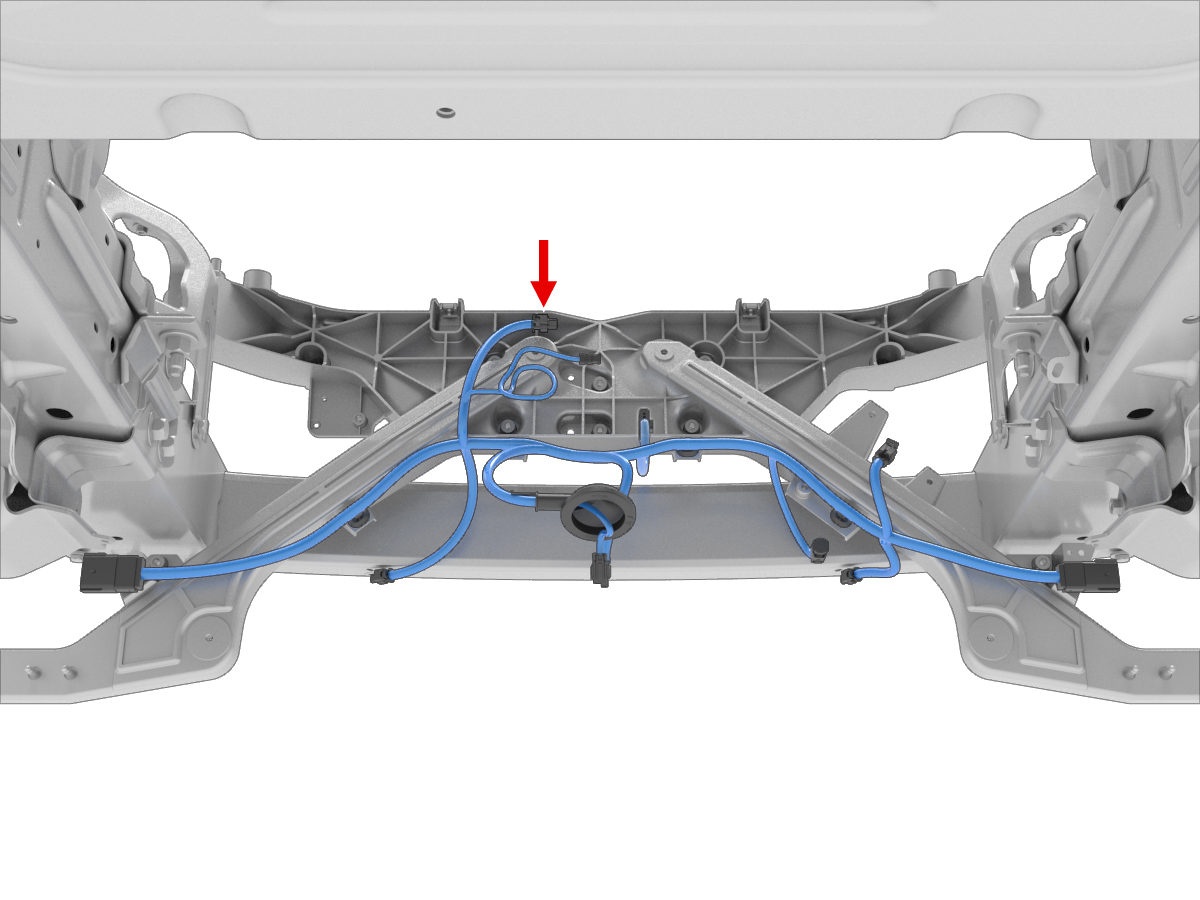

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSYE0.35DELPHI13887349X906M14
2DELPHI139591201.2x0.6FSBN0.35DELPHI13887349X906M9
3DELPHI139591201.2x0.6FSWH0.35DELPHI13887349X906M8
