X245

Tesla Part Number
1610784-01-B
Connector
DELPHI 35372152
Color
GN

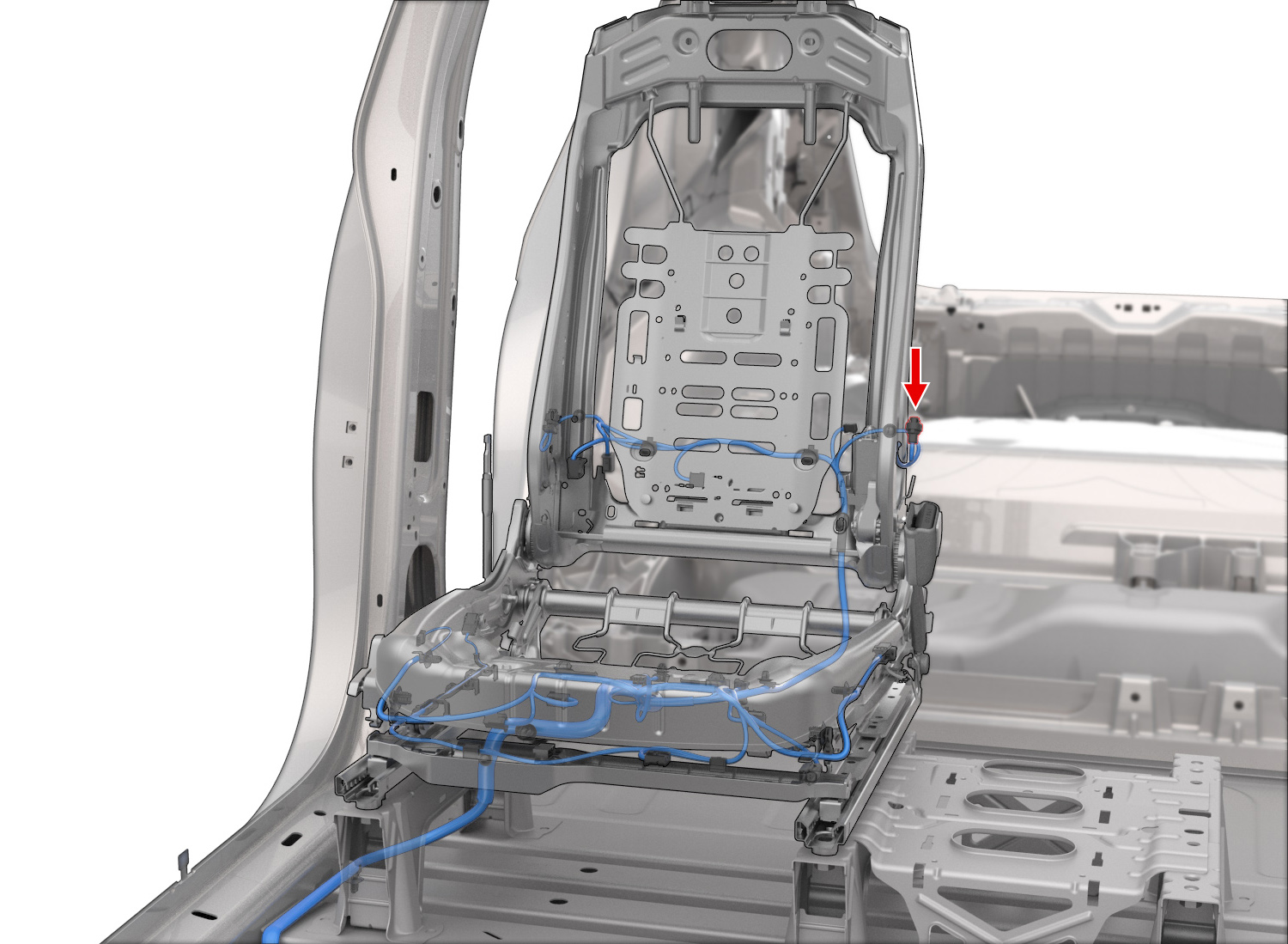

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-SRS-SVT/TN0.35X0521
2GENPIA-SRS-SGY/GN0.35X0522
