X213

Tesla Part Number
1038798-01-A
Connector
SUMITOMO 6098-6663
Color
BK

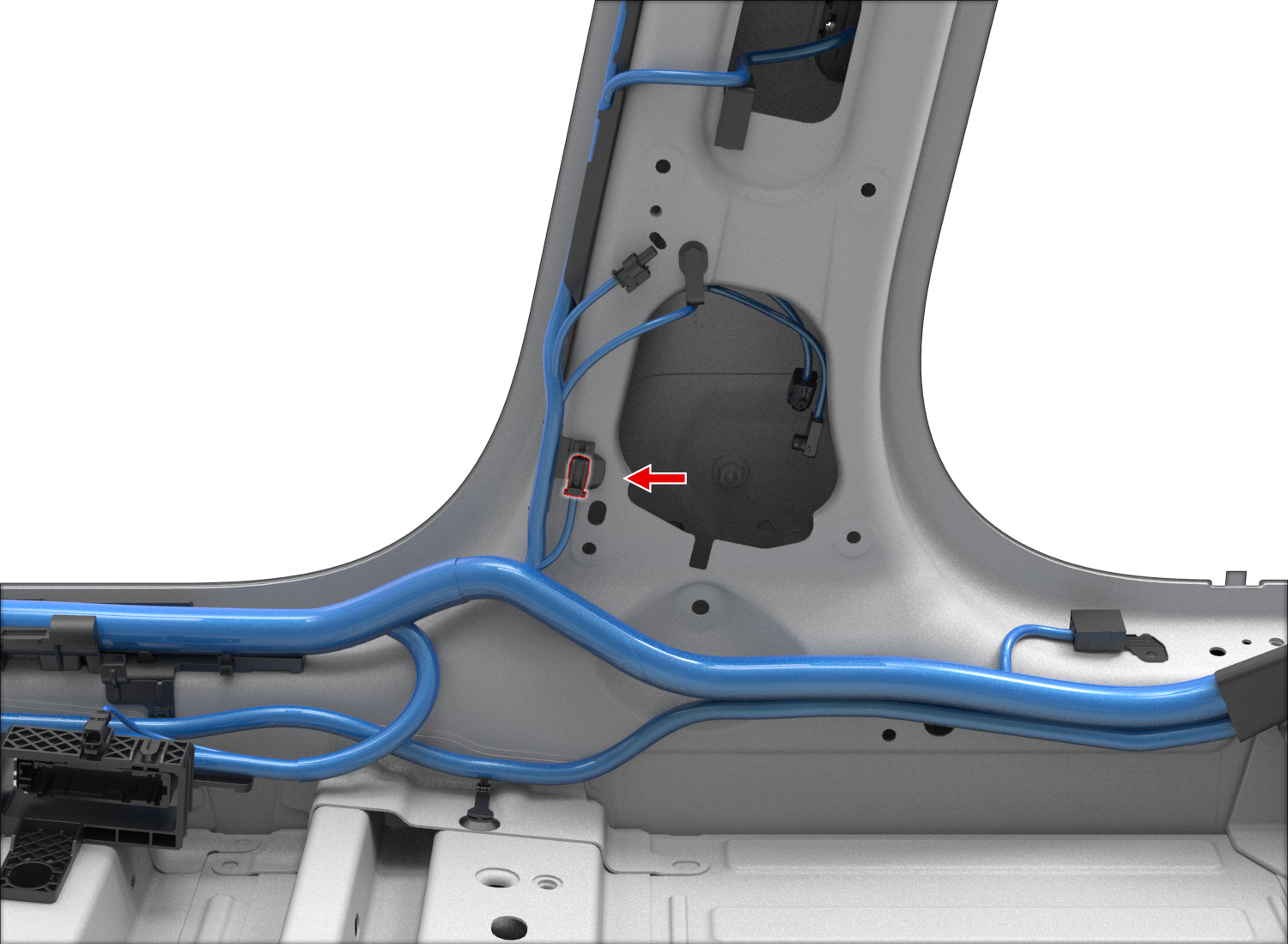

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8100-36250.64x0.64FYE0.35X0594
2SUMITOMO8100-36250.64x0.64FGN0.35X0593
