X887M

Tesla Part Number
1950366-00-A
Connector
AMP 3-2312193-1
Color
BK

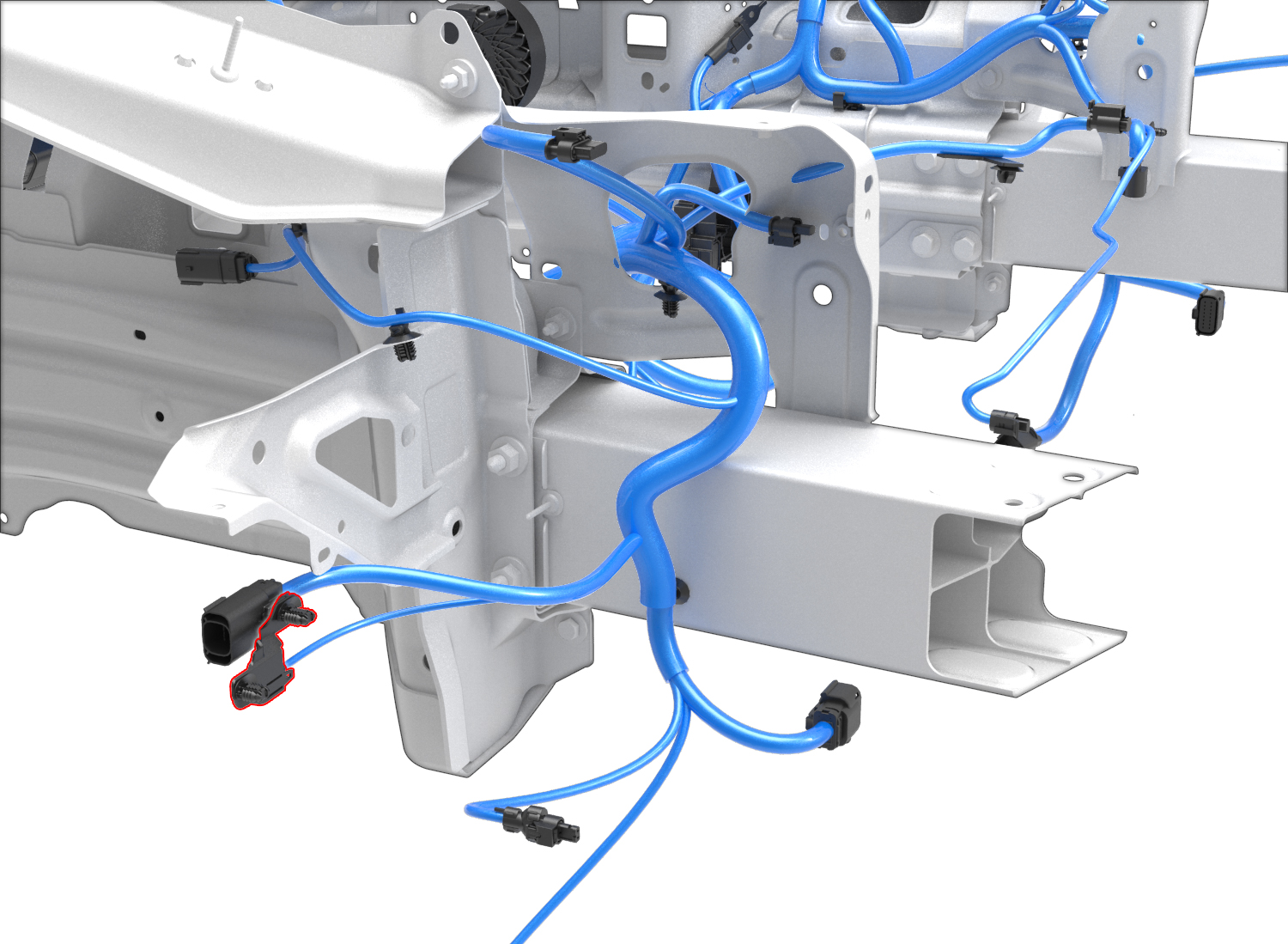

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2298490-1COAXBKD302PIAPIA-SEALX892A1
