G098

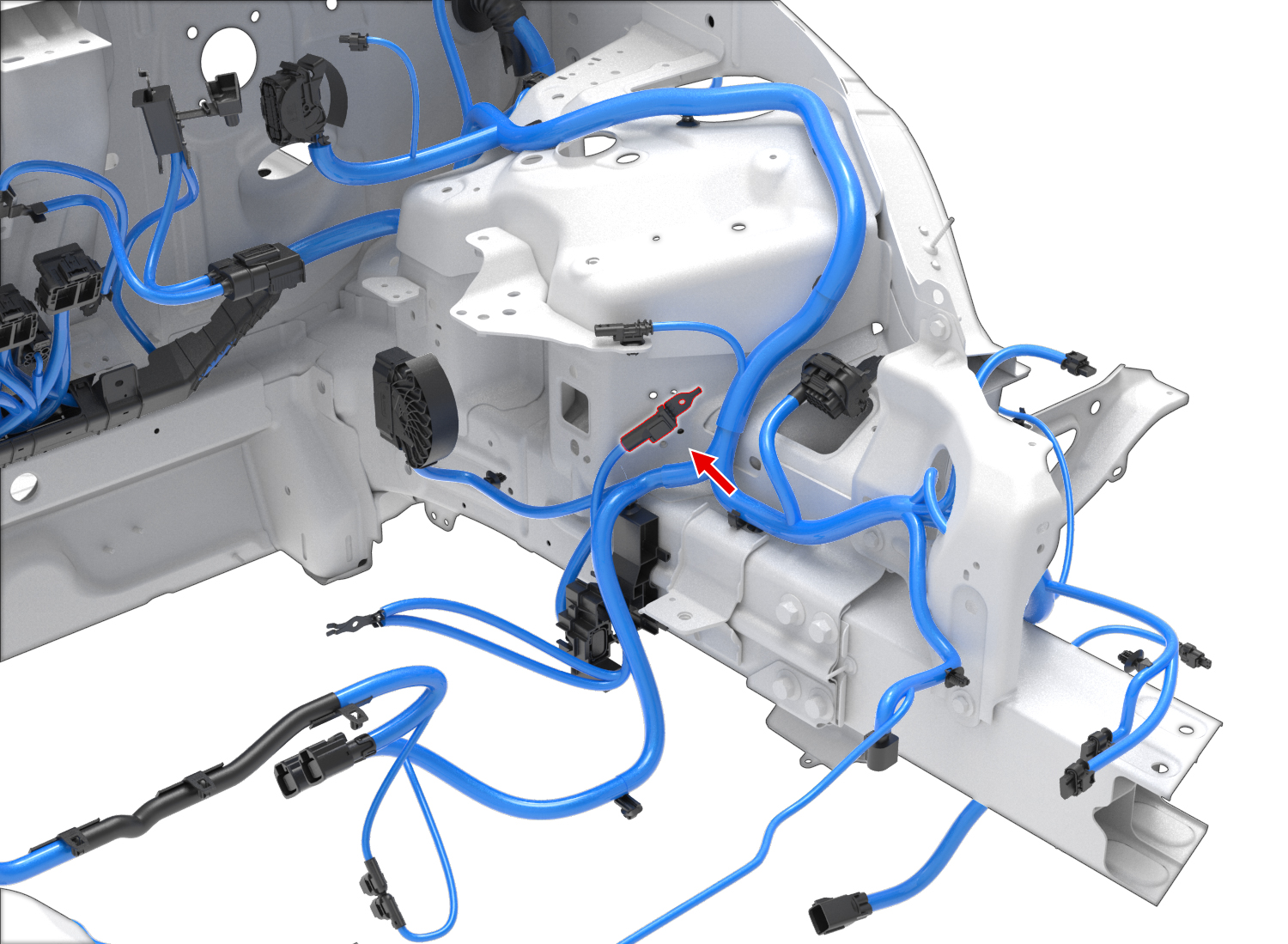

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KSE | K80F90802 | 6.3x0.8F | BK | 8.00 | KSE | K60F03102 | X190B | 1 |
