X059

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

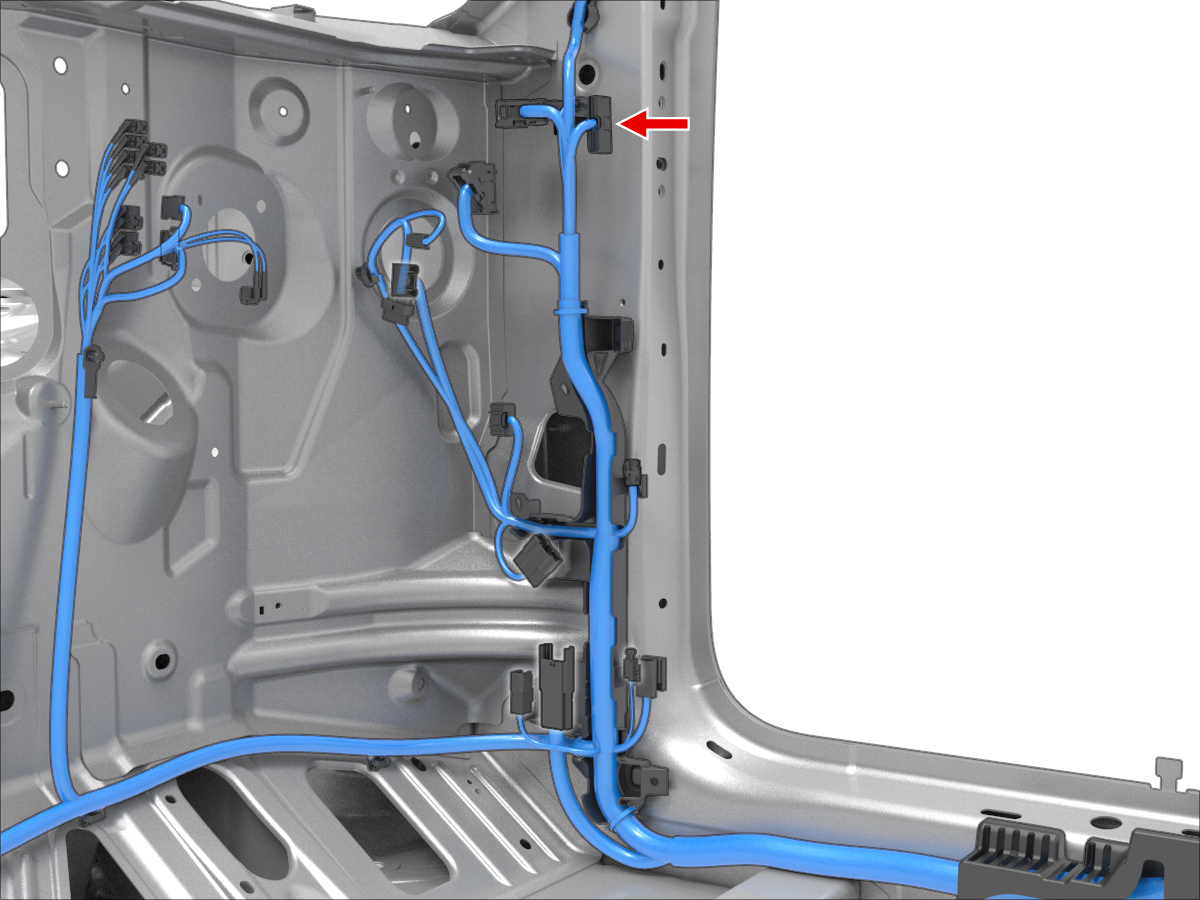

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X354	2
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X354	3
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X213	2
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X213	1
5	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.50			X171	2
6	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.50			X171	1
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X942F	19
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X942F	8
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X949M	3
11	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X486	7
12	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X486	8
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X942F	20
14	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X908F	3
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X942F	22
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X354	1
17	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X354	4
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	7
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X962M	3
20	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954M	5
21	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	6
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	1
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	2
24	unused
25	unused
26	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X942F	24
27	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X926M	12
28	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935M	12
29	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X942F	17
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X908F	19
31	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X942F	23
32	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X163A	2
33	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X163A	1
34	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50
35	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935M	18
36	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X935M	19
