X259

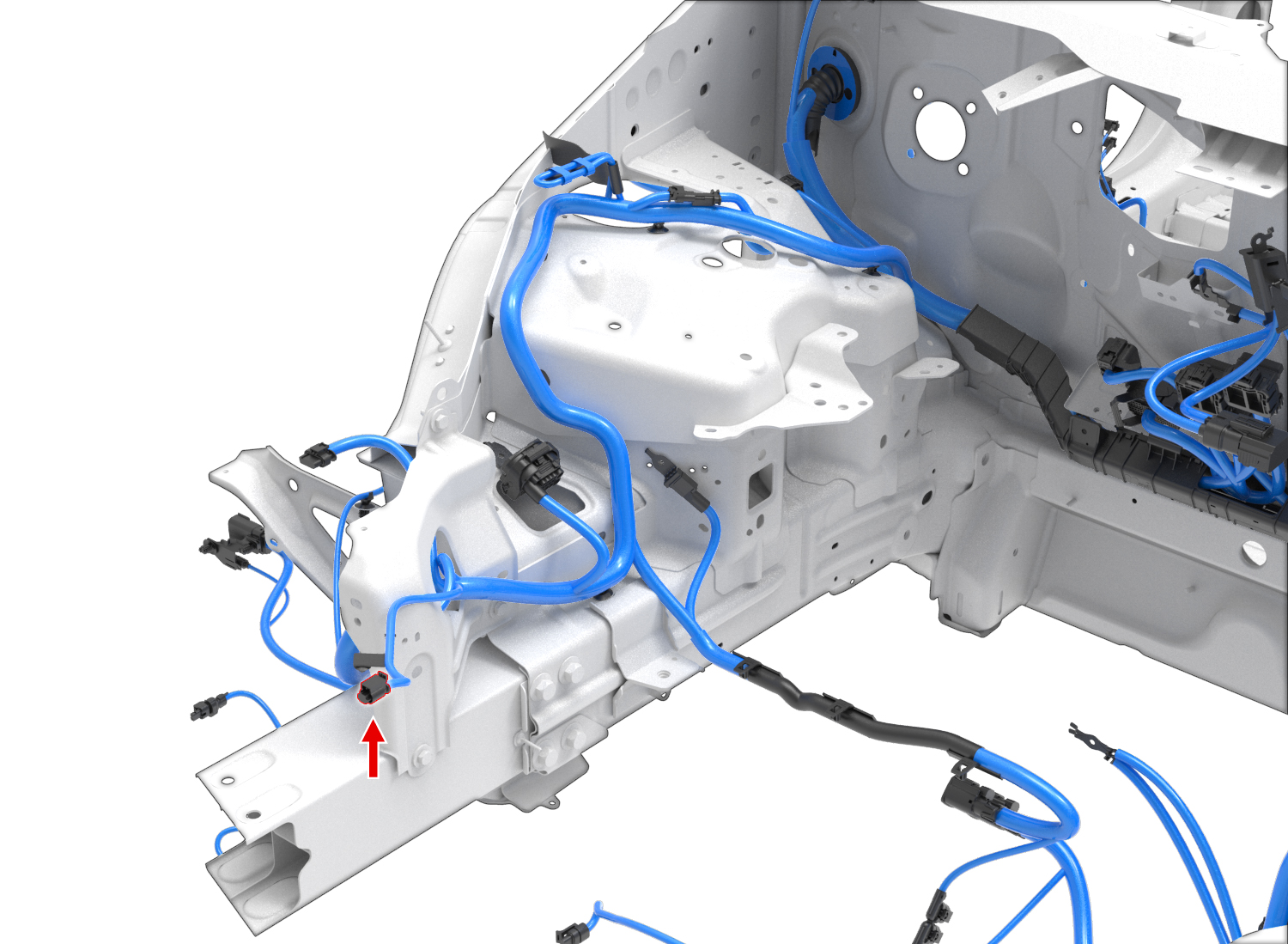

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-962885-1 | 0.63x0.63FS | YE | 0.35 | AMP | 967067-2 | X261 | 4 |
| 2 | AMP | 5-962885-1 | 0.63x0.63FS | BN | 0.35 | AMP | 967067-2 | X261 | 5 |
