X200

Tesla Part Number

1847528-00-D

Connector

SUMITOMO 6189-9566

Color

BK

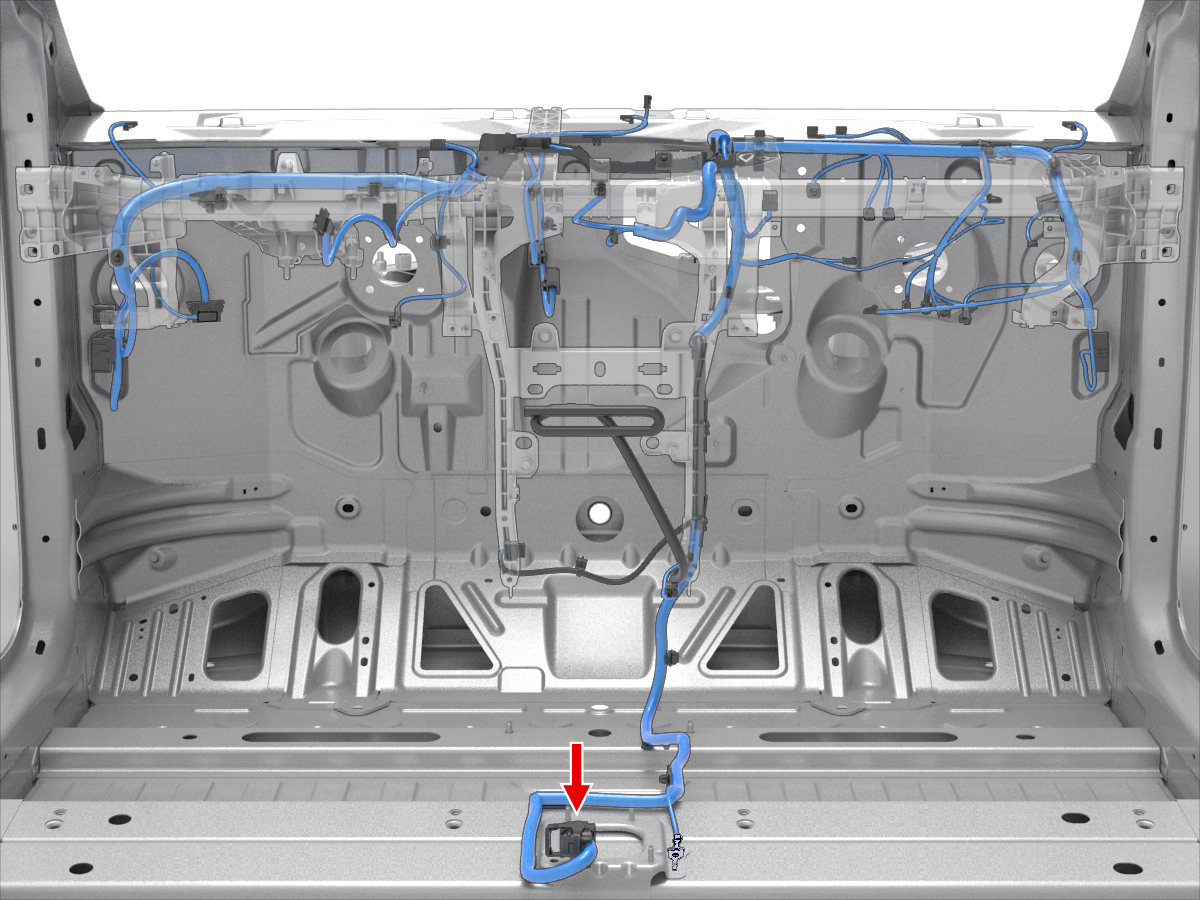

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0759	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X055	8
2	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X055	9
3	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X035	32
4	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X035	16
5	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X231	1
6	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X231	2
7	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X035	2
8	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X035	1
9
10
11
12
13
14	SUMITOMO	8240-0759	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X229	1
15	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X229	2
16	SUMITOMO	8240-0759	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X180	9
17	SUMITOMO	8240-0759	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X180	8
18	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X230	1
19	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X230	2
20
21
22	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X233	1
23	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X233	2
24	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X232	2
25	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X232	1
26
27	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X055	33
28
29
30
31	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X035	17
32	SUMITOMO	8240-0759	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X035	18
33	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X055	11
34	SUMITOMO	8240-0759	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X055	10
35	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X055	34
36
37
38	SUMITOMO	8240-0759	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X055	1
39	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X055	18
40	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X055	32
41
42
43	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X035	8
44	SUMITOMO	8240-0759	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X035	23
45	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X035	7
46	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X035	4
47	SUMITOMO	8240-0759	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X035	9
48	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X035	25
49	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X035	26
50	SUMITOMO	8240-0759	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X035	27
51	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X035	21
52	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X035	6
