X191B

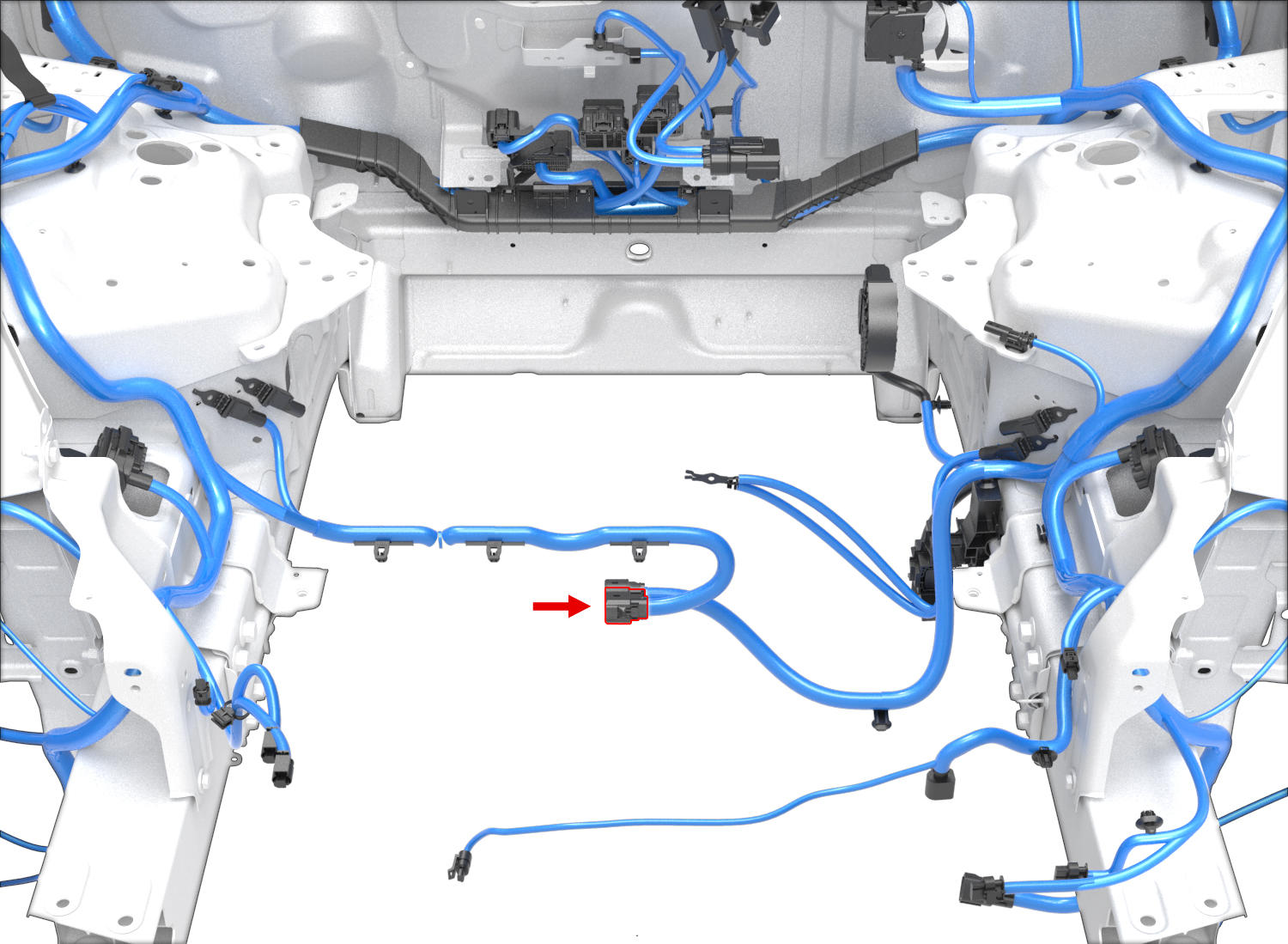

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35255765 | 6.35F | WH | 8.00 | DELPHI | 33387255 | X015 | 2 |
| 2 | DELPHI | 35255765 | 6.35F | BK | 8.00 | DELPHI | 33387255 | G099 | 1 |
| 3 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | GN | 0.35 | YAZAKI | 7158-3030-50 | ||
| 4 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | DKGN/WH | 0.35 | YAZAKI | 7158-3030-50 | ||
| 5 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | YE | 0.35 | YAZAKI | 7158-3030-50 | X010 | 17 |
