G032

Tesla Part Number

1660490-00-C

Connector

KSE K30M00121

Color

BK

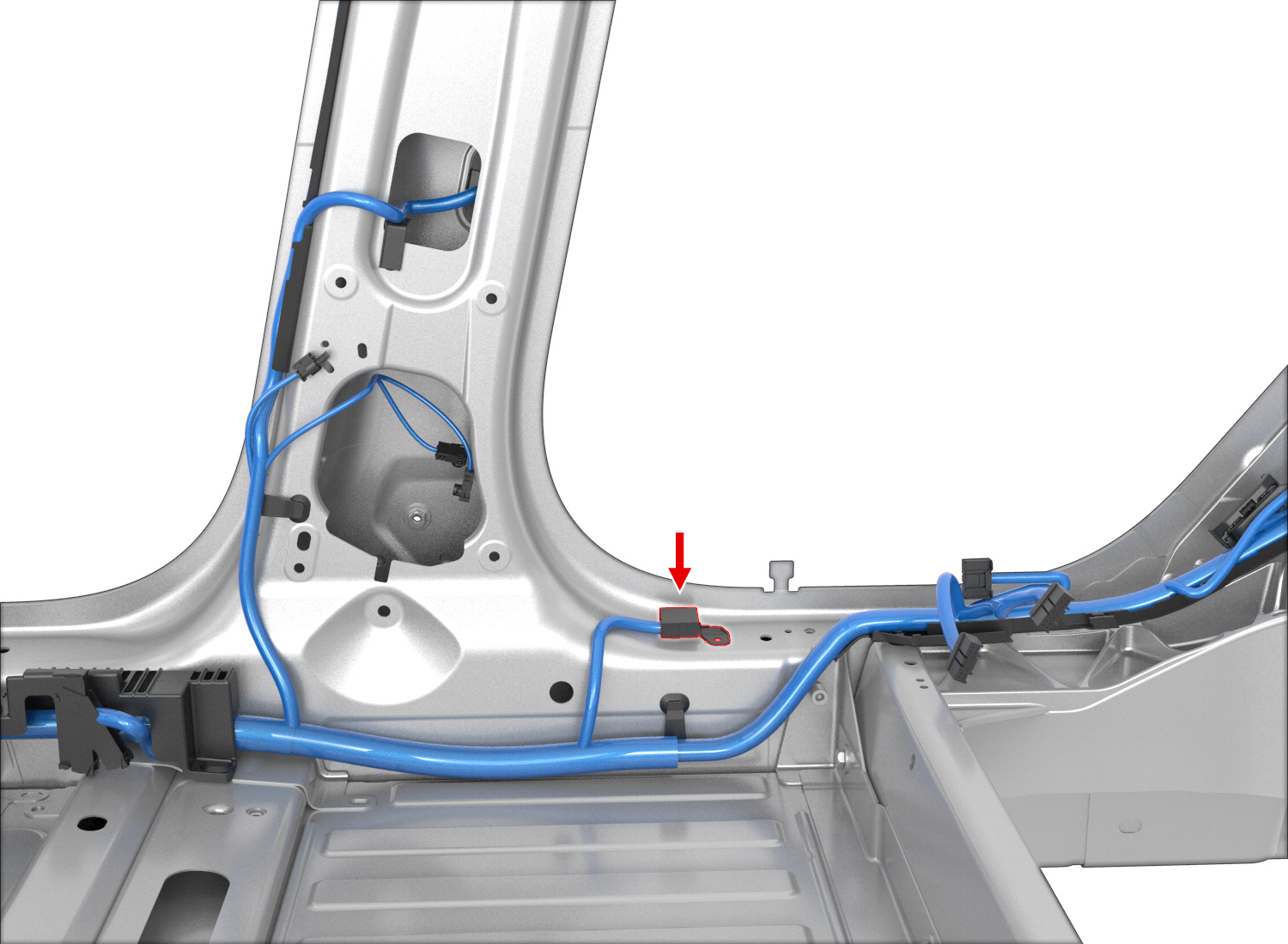

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-0782	4.8x0.8F	BK	3.00			G042	1
2	unused
3	SUMITOMO	8100-0782	4.8x0.8F	BK	2.00			X165A	2
4	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X942F	12
5	unused
6	unused
7	unused
8	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X179	20
9	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X486	4
10	unused
11	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X942F	9
12	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X490	4
13	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X098	9
14	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X494	5
15	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X962M	4
