X541

Tesla Part Number
1739640-00-A
Connector
DELPHI 35382826
Color
BK

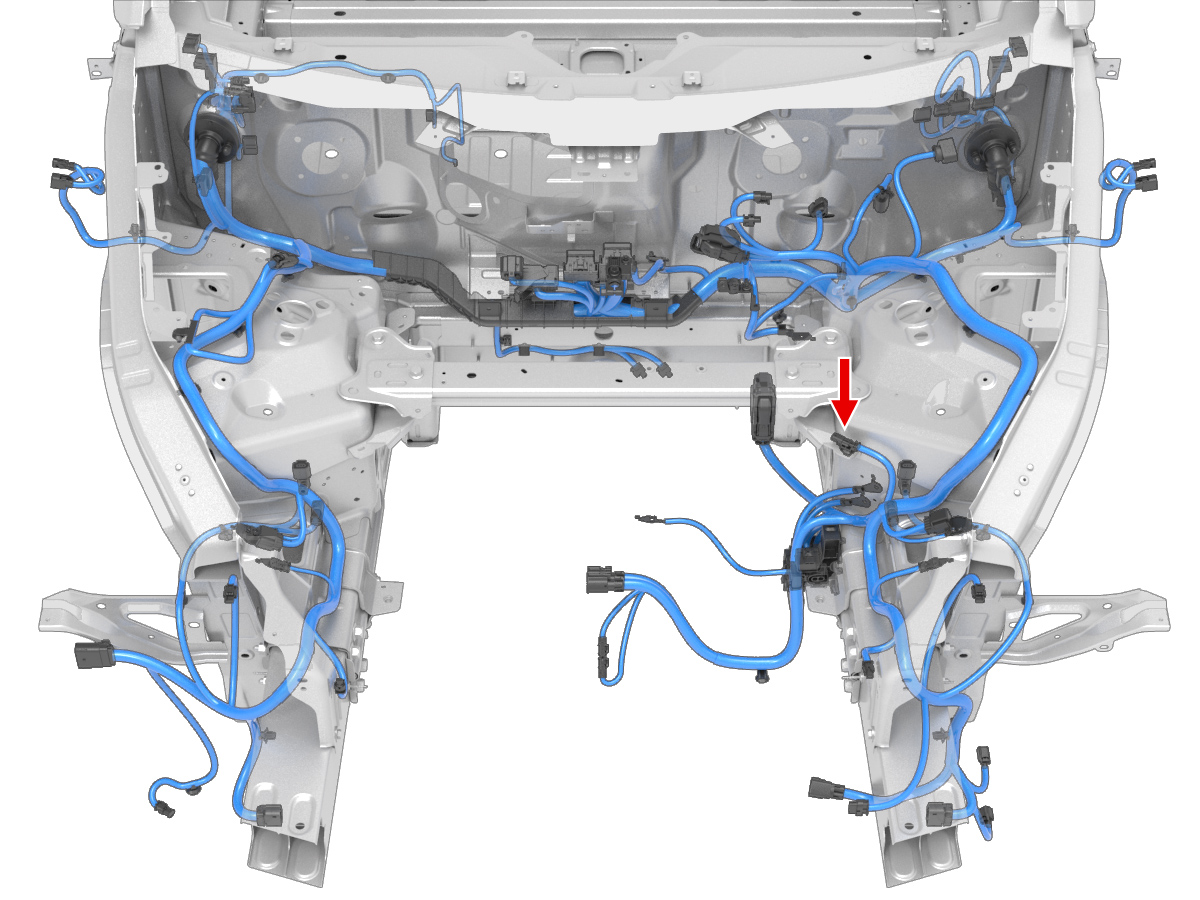

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2141114-11.2x0.63WH0.35DELPHI13887349X908M22
2AMP2141114-11.2x0.63YE0.35DELPHI13887349X908M23
