X954M

Tesla Part Number
2032479-00-A
Connector
AMP 2403199-1
Color
NA

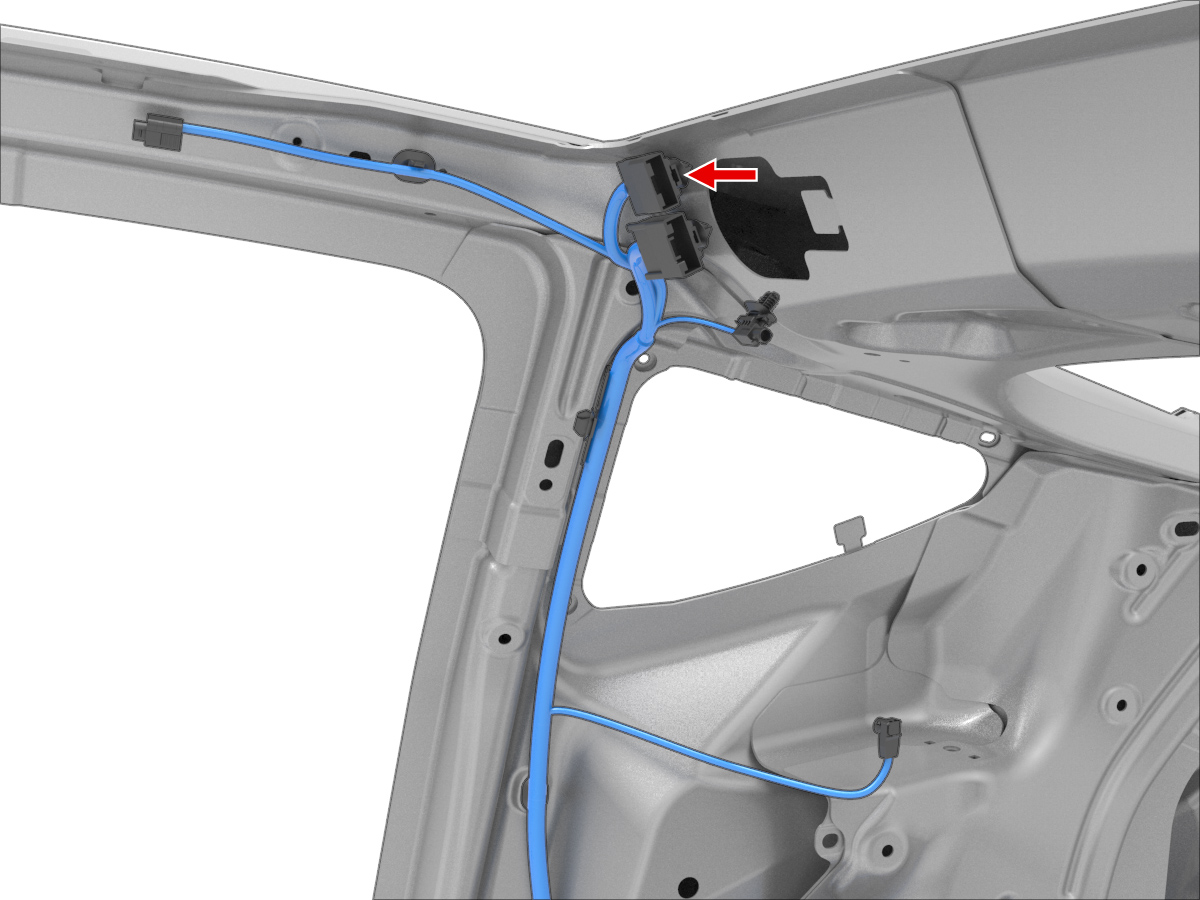

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2385474-10.63x0.63MBU0.35X05922
2AMP2385474-10.63x0.63MVT0.35X05923
3AMP2385474-10.63x0.63MGY0.35X935M40
4AMP2385474-10.63x0.63MTN0.35X05038
5AMP2385474-10.63x0.63MWH0.35X05920
6AMP2385474-10.63x0.63MBU0.35X05921
7AMP2385474-10.63x0.63MVT0.35X05918
8AMP2385474-10.63x0.63MWH0.35X05052
9AMP2385474-10.63x0.63MWH0.35X935M60
10AMP2385474-10.63x0.63MGY0.35X935M59
11AMP2385474-10.63x0.63MBU0.35X0506
12unused
13AMP2385474-10.63x0.63MVT0.35X05036
14AMP2385474-10.63x0.63MRD0.35X05032
15AMP2385474-10.63x0.63MYE0.35X05037
16AMP2385474-10.63x0.63MBU0.35X05023
