X251

Tesla Part Number
2013652-00-A
Connector
DELPHI 35726388
Color
YE

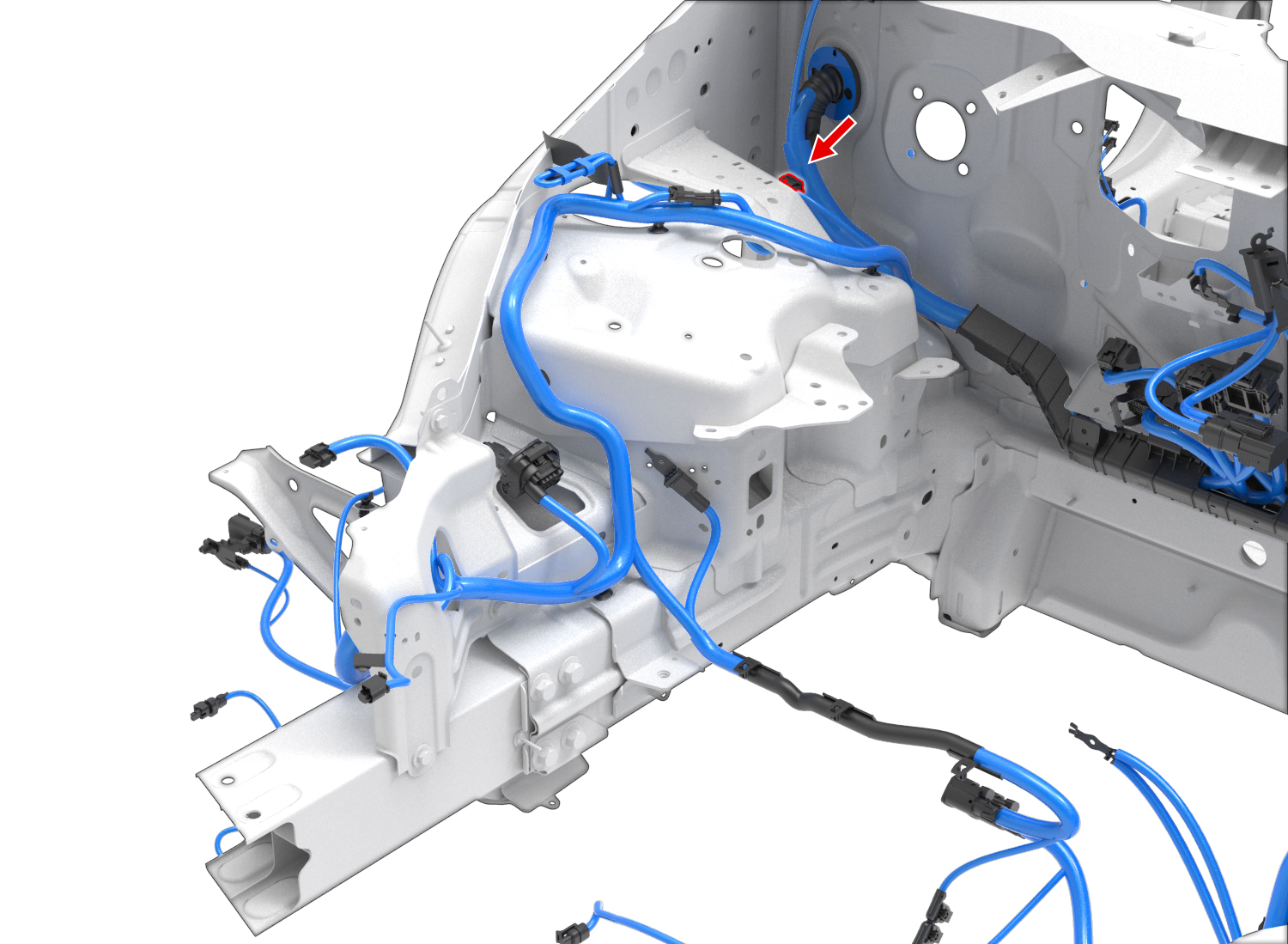

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI135806500.64x0.64FWH0.35DELPHI13887349X909M10
2DELPHI135806500.64x0.64FYE0.35DELPHI13887349X909M9
