X909M

Tesla Part Number

1042579-00-A

Connector

SUMITOMO 6098-3877

Color

WH

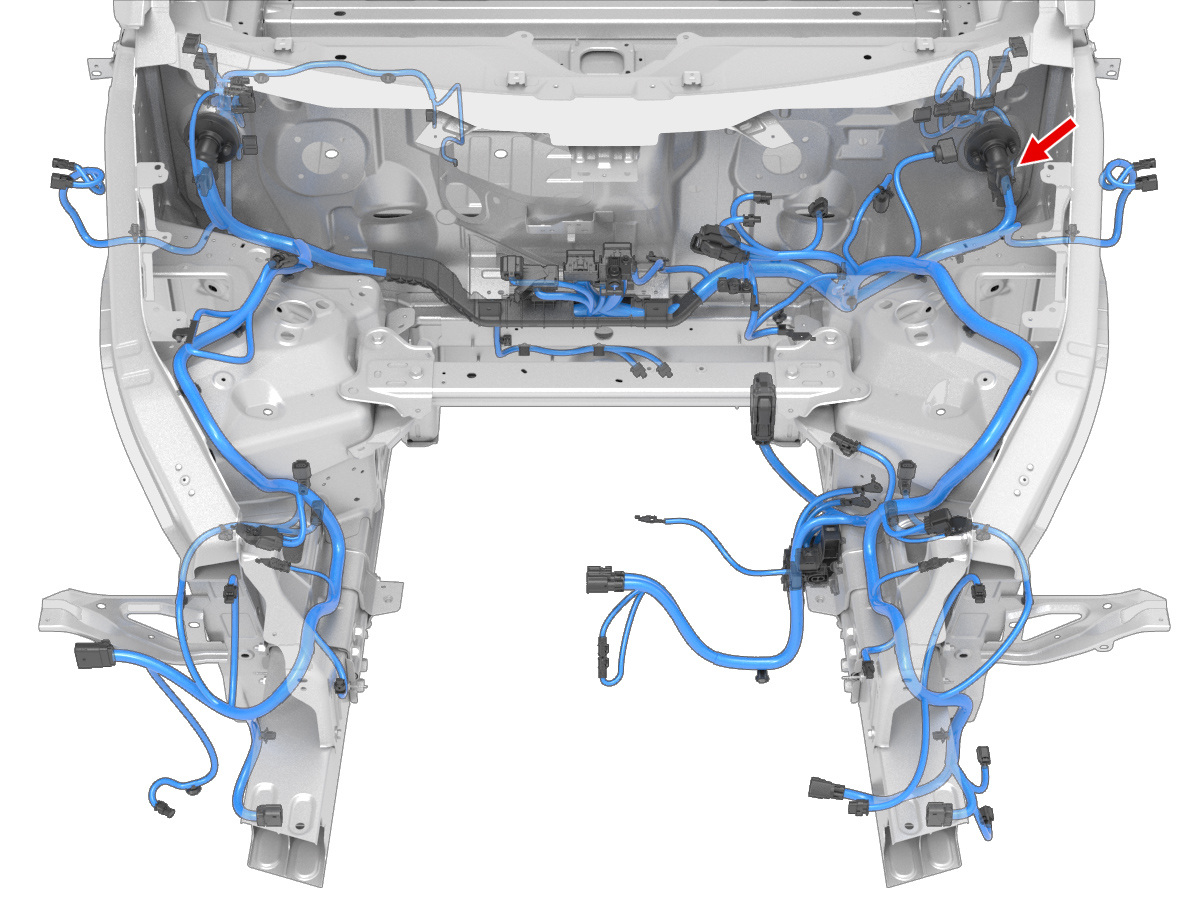

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X905F	5
2	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X905F	6
3	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X010	15
4	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X010	30
5	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X250	1
6	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X250	2
7	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X906F	5
8	unused
9	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X251	2
10	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X251	1
11	unused
12	unused
13	unused
14	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X906F	6
