X060

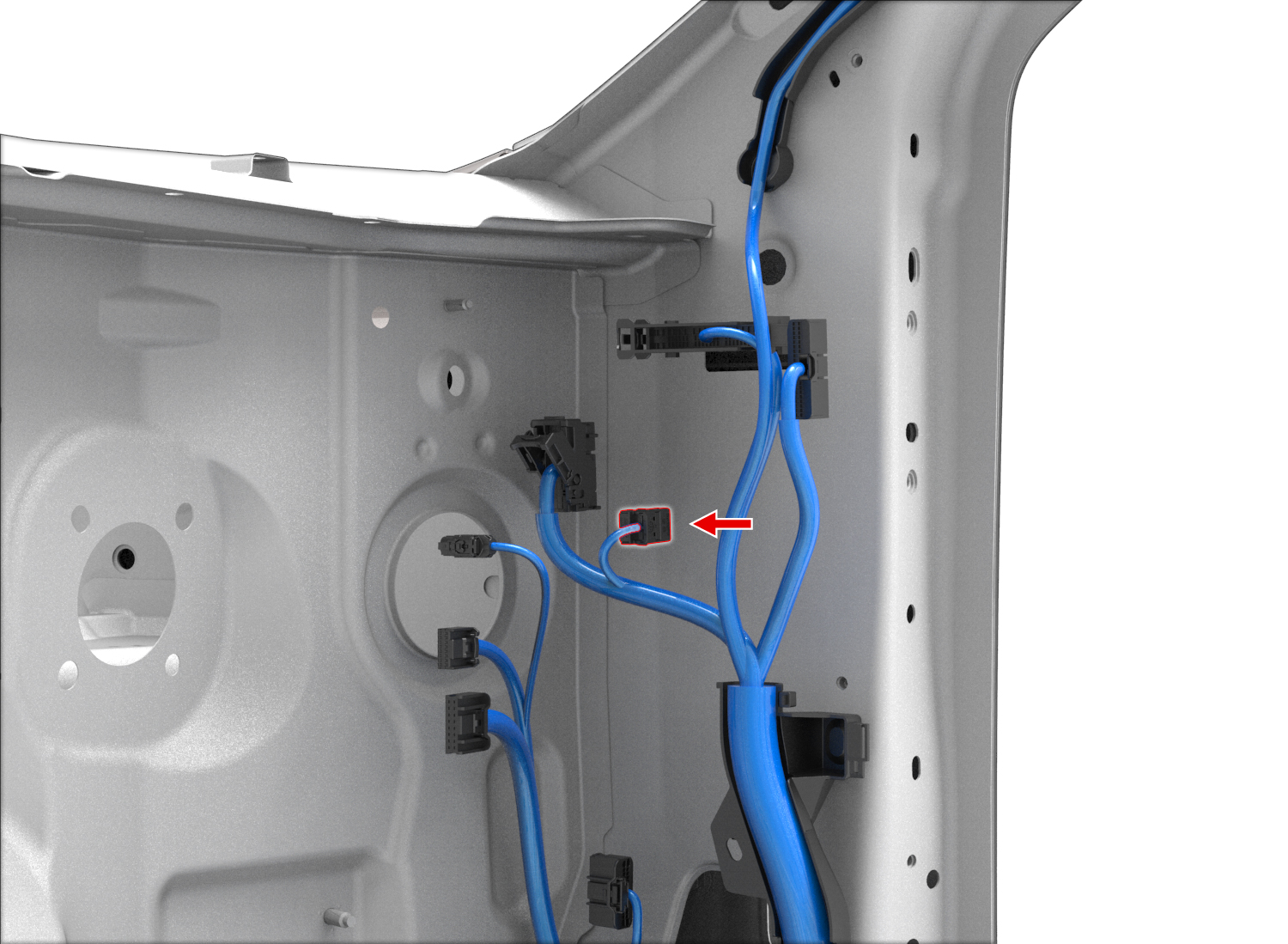

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4032 | 4.8x0.8F | RD | 3.00 | X561 | 6 | ||
| 2 | YAZAKI | 7116-4032 | 4.8x0.8F | BU | 3.00 | X953M | 8 |
