X908F

Tesla Part Number

1849226-00-C

Connector

KSE K20F01221

Color

NA

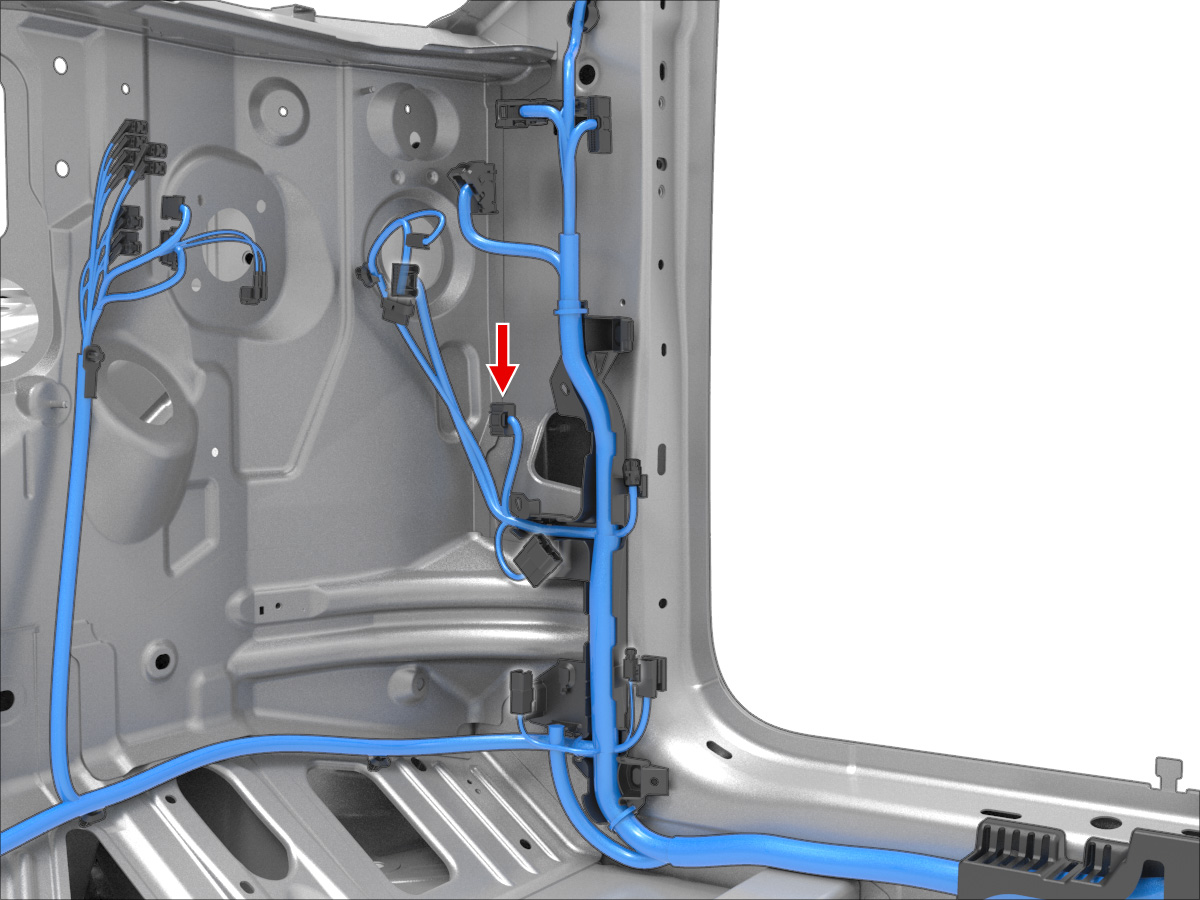

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	TN	2.00			X171	12
2	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X051	37
3	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X059	14
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X952M	4
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X952M	5
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X050	27
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X050	49
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X050	28
11	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X050	50
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X050	26
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X050	51
14	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X175	7
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X051	43
17	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35			X179	13
18	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X179	14
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X059	30
20	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X952M	2
21	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X952M	3
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X098	1
23	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X098	3
24	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X486	6
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X486	5
26	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X175	8
