X866F

Tesla Part Number
1609180-01-A
Connector
AMP 2-2310137-2
Color
WH

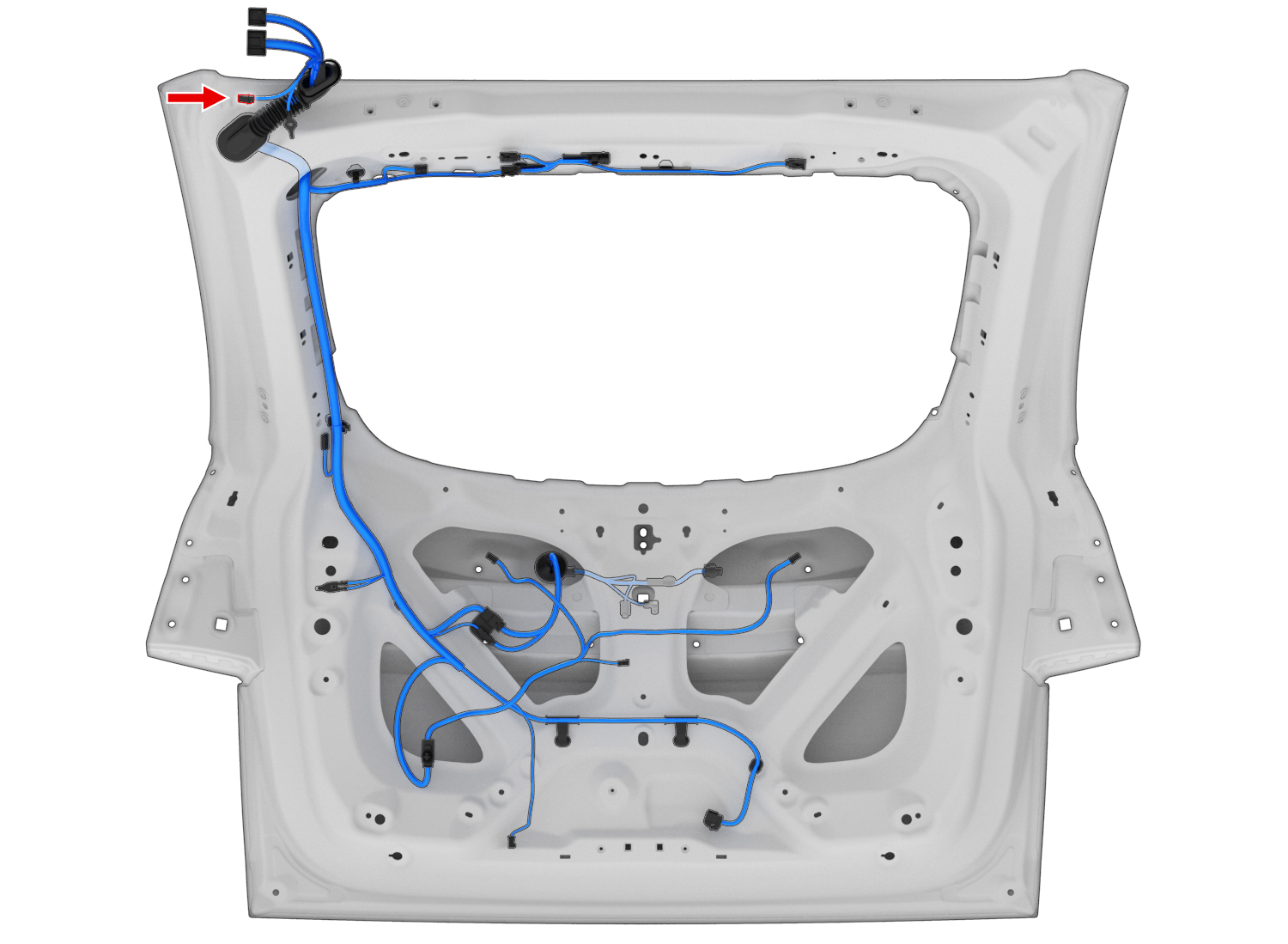

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2298510-1COAXBKD462X865M1
