X909F

Tesla Part Number

1042580-00-A

Connector

SUMITOMO 6098-3917

Color

WH

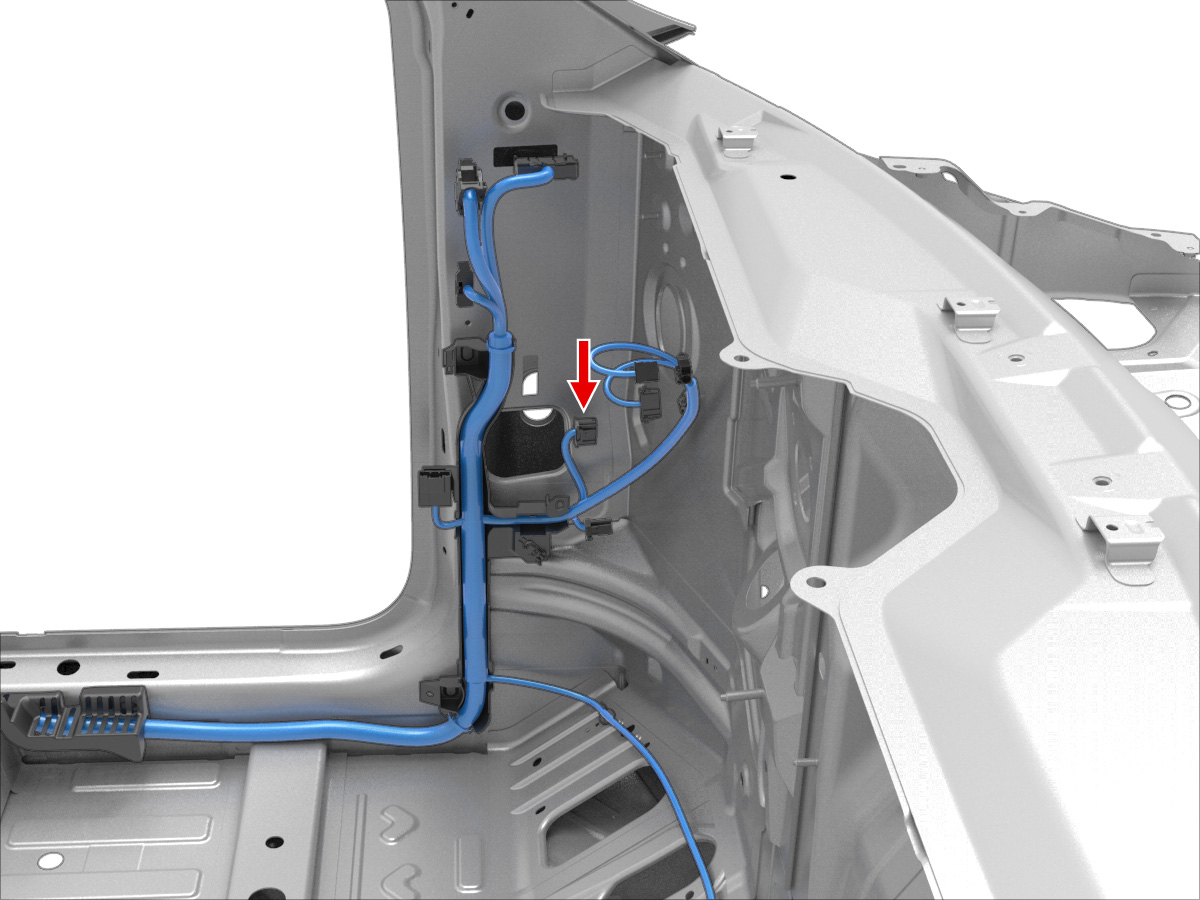

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	47
2	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	48
3	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X031	29
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X031	30
5	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	8
6	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X201	7
7	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X201	46
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	6
10	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	5
11	unused
12	unused
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	45
