X687

Tesla Part Number

1106079-00-A

Connector

AMP 1379665-5

Color

NA

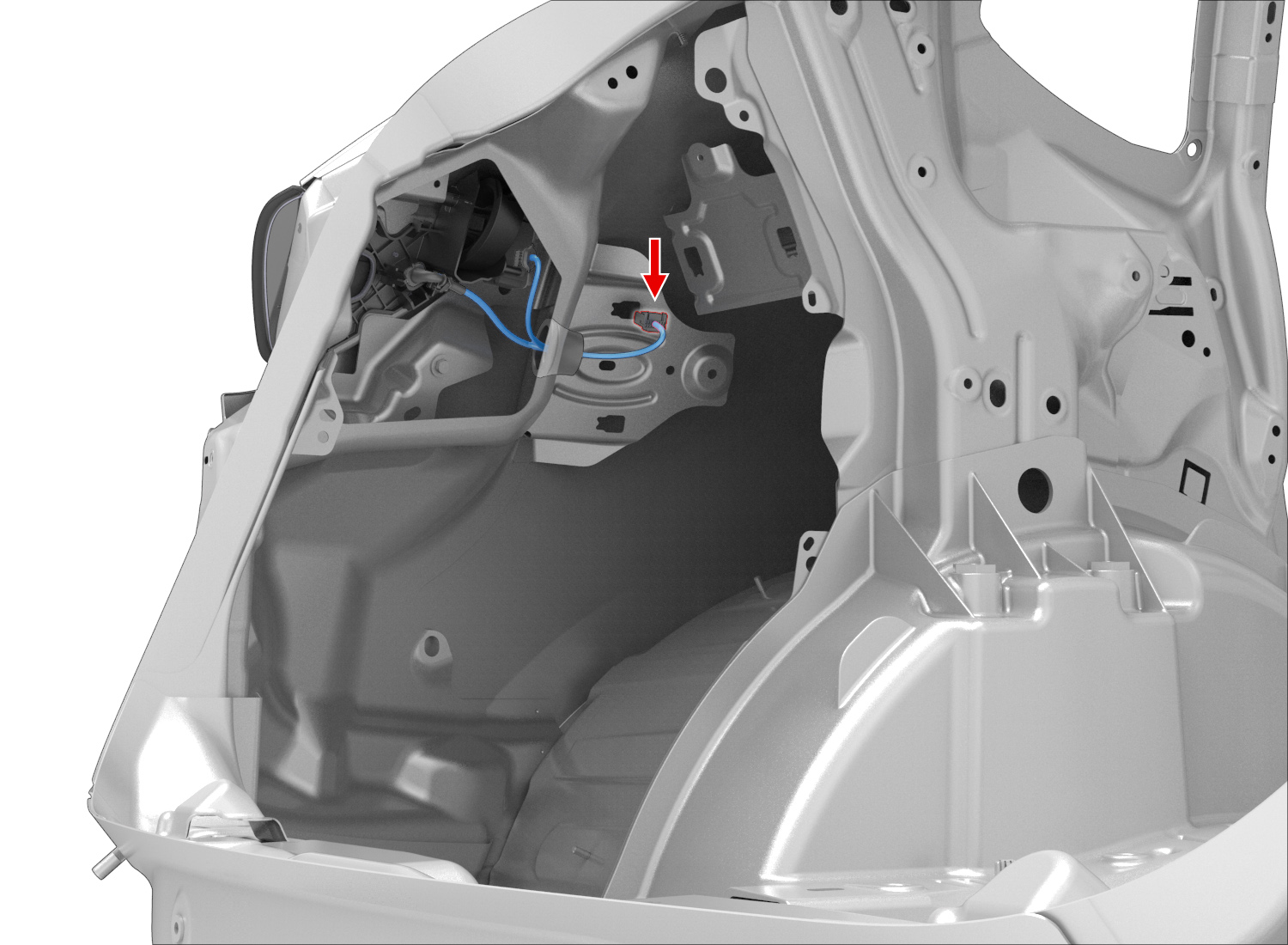

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1				BK	0.13			X690	9
2	AMP	1123343-1	0.64x0.64F	BN	0.13			X690	1
3	AMP	1123343-1	0.64x0.64F	OG	0.13			X690	4
4				YL	0.13			X690	7
5				RD	0.35			X691	4
6	AMP	1123343-1	0.64x0.64F	RD	0.13			X690	6
7	AMP	1123343-1	0.64x0.64F	GN	0.13			X690	8
8				BU	0.13			X690	10
9
10				BK	0.35			X691	5
11				OG	0.35			X691	3
12	AMP	1123343-1	0.64x0.64F	WH	0.13			X690	2
13				VT	0.13			X690	5
14				GY	0.13			X690	3
15				VT	0.35			X691	2
16	AMP	1123343-1	0.64x0.64F	GN	0.35			X691	1
