X895

Tesla Part Number
1815179-04-A
Connector
AMP 2307383-5
Color
GN

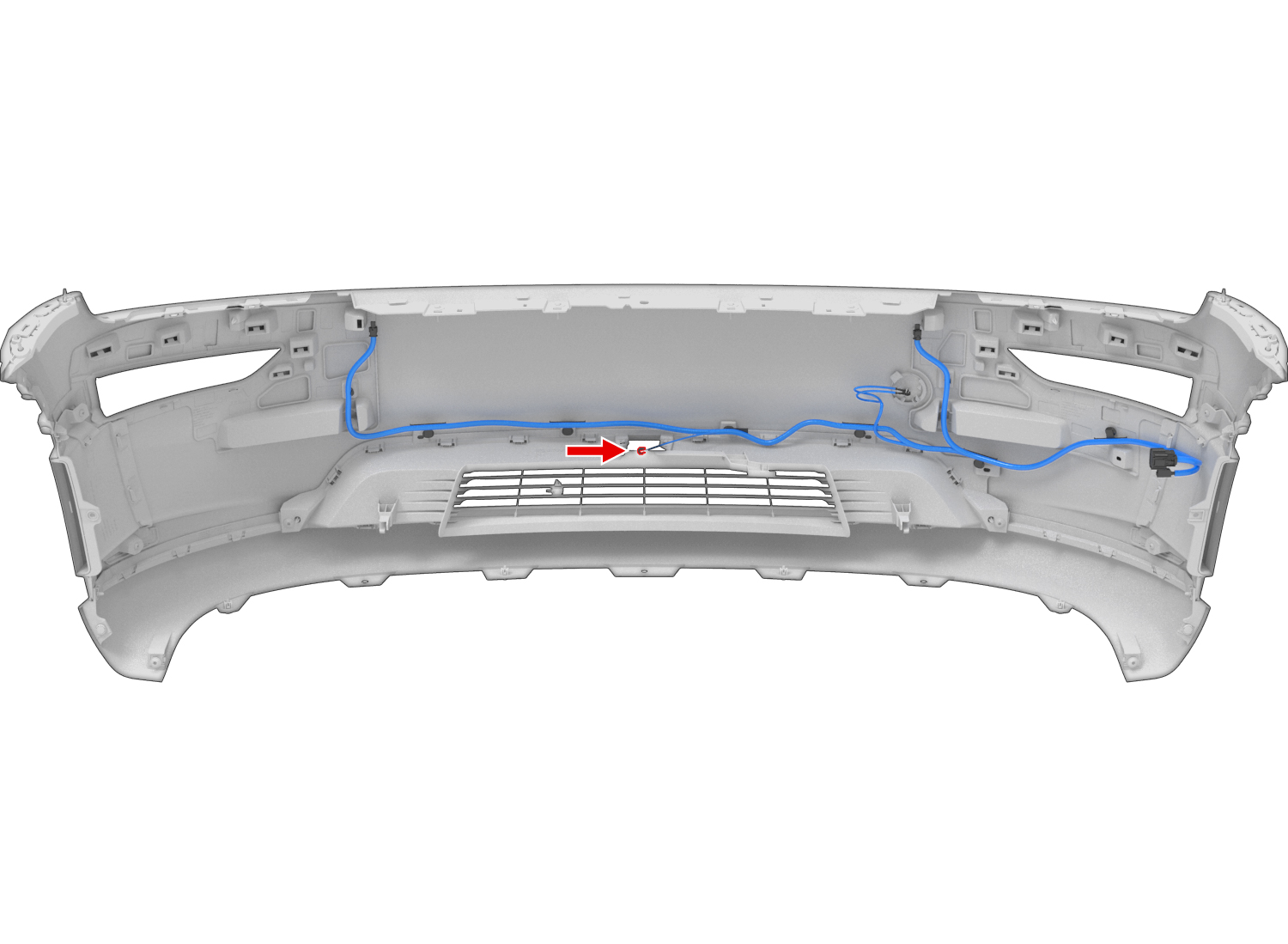

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2203274-3, 2203270-8, 2272633-3COAXFBKD302AMP963245-1X887F1
