X011

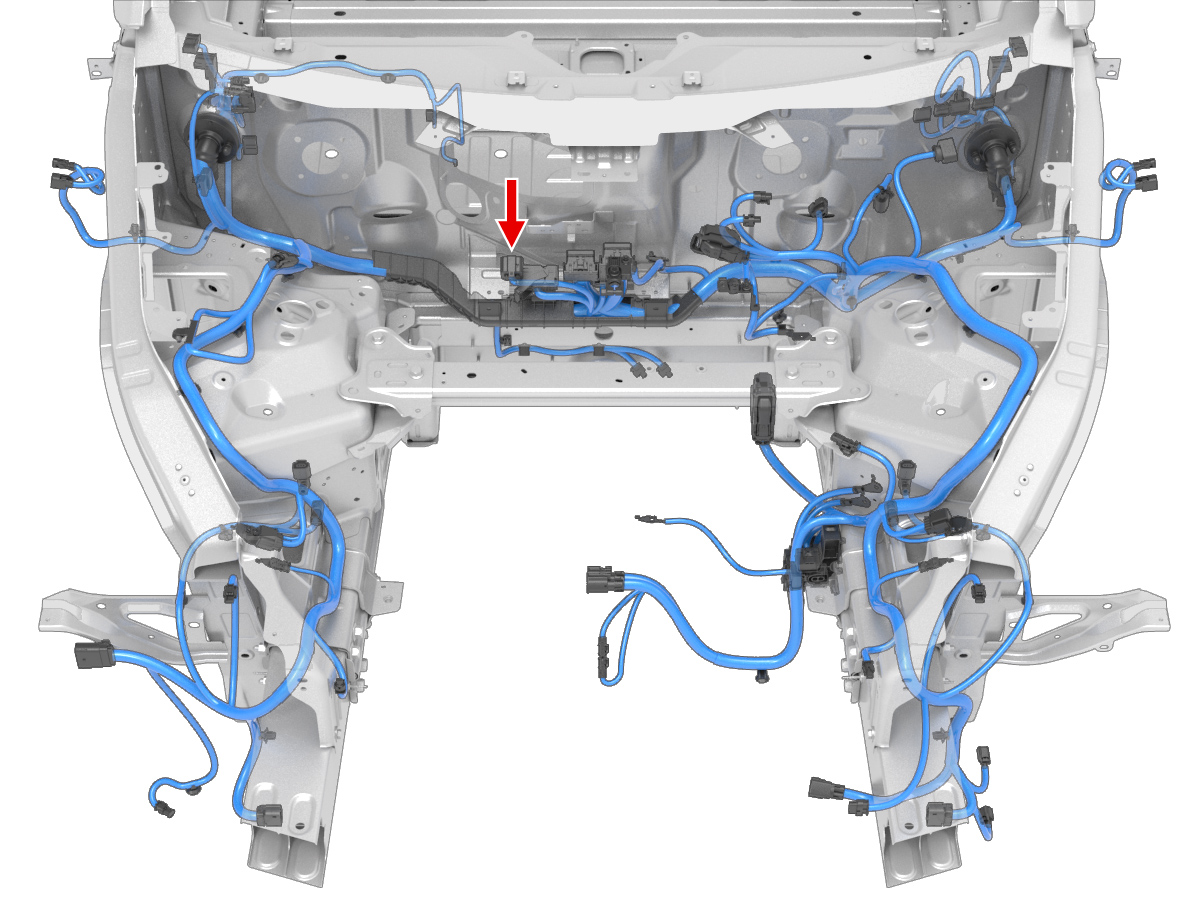

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KSE | K80F60114 | 6.3 | BU | 5.00 | KSE | K60F01413 | X525 | 3 |
| 2 | KSE | K80F60114 | 6.3 | RD | 5.00 | KSE | K60F01413 | X525 | 1 |
| 3 | unused | ||||||||
| 4 | KSE | K80F60111 | 6.3 | BN | 0.50 | KSE | K60F01411 | ||
| 5 | KSE | K80F60114 | 6.3 | YE | 5.00 | KSE | K60F01413 | X525 | 2 |
| 6 | KSE | K80F60113 | 6.3 | WH | 4.00 | KSE | K60F01413 | X120A | 1 |
| 7 | KSE | K80F60114 | 6.3 | YE | 5 | KSE | K60F01413 | X151 | 1 |
