X321

Tesla Part Number

2132255-00-A

Connector

DELPHI 35888825

Color

BK

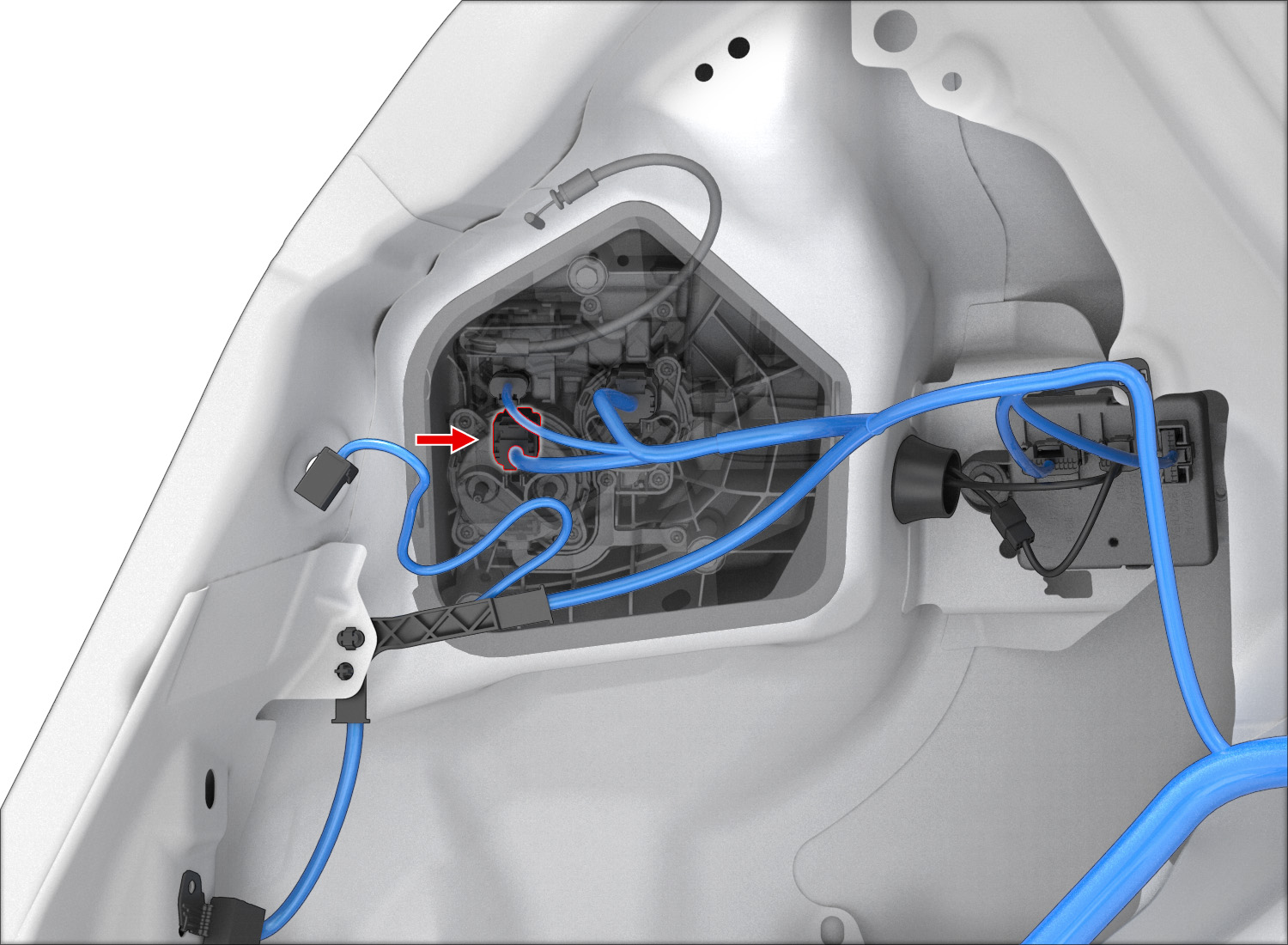

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35072403	1.2x0.6F	BK	0.50	TESLA	MAT-120-190	X688	9
2	DELPHI	35072403	1.2x0.6F	BN	0.50	TESLA	MAT-120-190	X688	3
3	DELPHI	35072403	1.2x0.6F	WH	0.50	TESLA	MAT-120-190	X688	10
4	DELPHI	35072403	1.2x0.6F	GN	0.50	TESLA	MAT-120-190	X688	11
5	unused
6	DELPHI	35072403	1.2x0.6F	BU	0.50	TESLA	MAT-120-190	X688	17
7	DELPHI	35072403	1.2x0.6F	GY	0.50	TESLA	MAT-120-190	X688	2
8	DELPHI	35072403	1.2x0.6F	YE	0.50	TESLA	MAT-120-190	X688	6
