X403

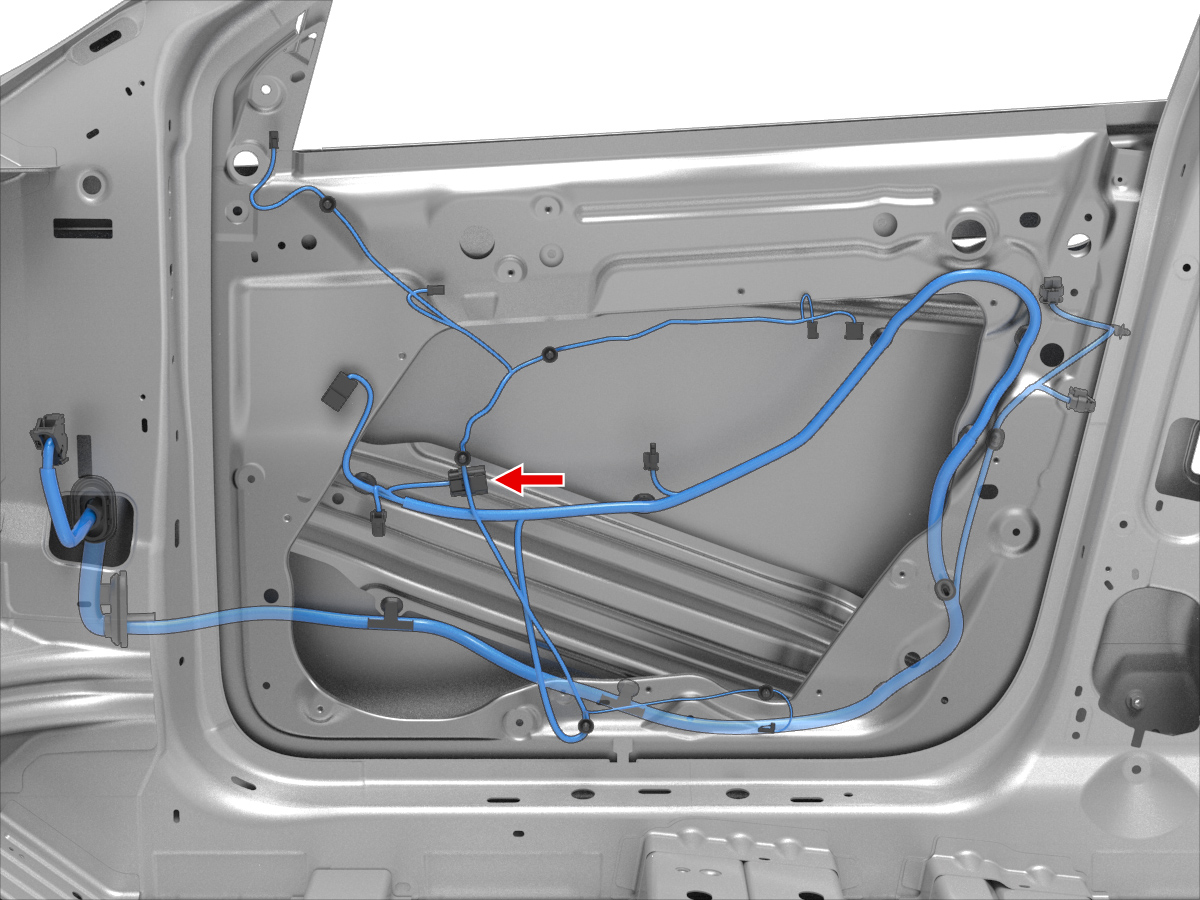

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13979933 | 2.8x0.8F | RD | 1.50 | X053A | 2 | ||
| 2 | unused | ||||||||
| 3 | DELPHI | 13979933 | 2.8x0.8F | TN | 1.50 | X053A | 1 | ||
| 4 | DELPHI | 33512053 | 2.8x0.8F | YE | 0.35 | X053A | 7 | ||
| 5 | DELPHI | 33512053 | 2.8x0.8F | BU | 0.35 | X053A | 16 | ||
| 6 | DELPHI | 33512053 | 2.8x0.8F | BN | 0.35 | X053B | 16 | ||
