X152

Tesla Part Number

2079814-00-A

Connector

AMP 7-2209520-3

Color

BK

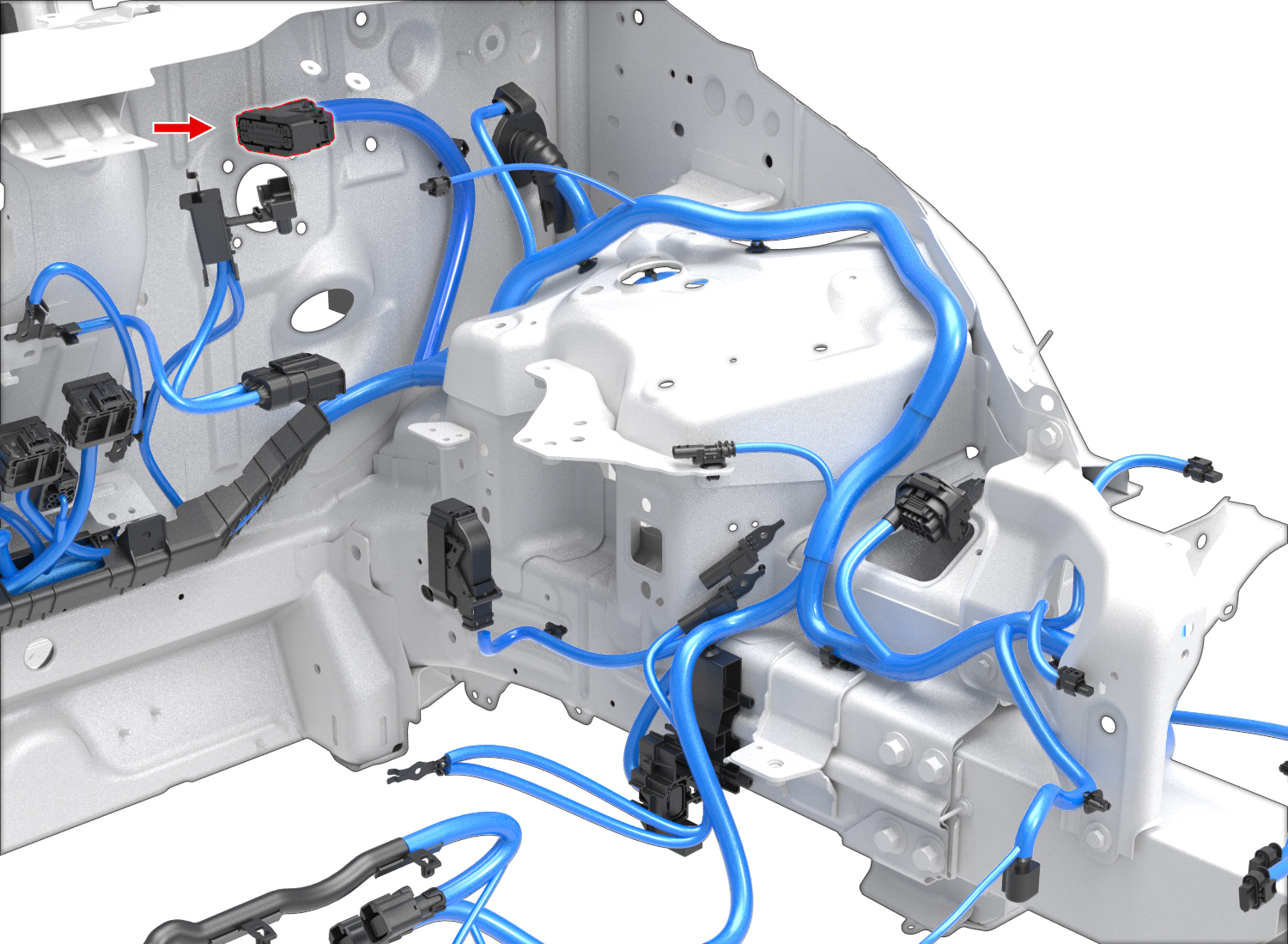

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1241414-1	6.3x0.8F	WH	2.00	AMP	1394511-1	X010	91
2
3
4	AMP	1534594-1	1.2x0.63F	VT	0.35	TESLA	MAT-120-240	X010	71
5	unused
6	unused
7	unused
8	unused
9	AMP	1534594-1	1.2x0.63F	DKGN/WH	0.35	TESLA	MAT-120-240
10	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240
11	unused
12
13
14	AMP	1241418-4	6.3x0.8F	BK	5.00	AMP	1719043-1	G012	6
15	unused
16	AMP	1534594-1	1.2x0.63F	YE/LTBU	0.35	TESLA	MAT-120-240	X010	14
17	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X010	29
18	unused
19	unused
20	AMP	1534594-1	1.2x0.63F	BU	0.35	TESLA	MAT-120-240	X160	1
21	unused
22	unused
23	unused
24	unused
25	unused
26	unused
27	unused
28	unused
29	unused
30	AMP	1241418-4	6.3x0.8F	YE	5.00	AMP	1719043-1	X011	7
31	unused
32	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240	X908M	21
33	AMP	1534594-1	1.2x0.63F	TN	0.35	TESLA	MAT-120-240	X908M	20
34	unused
35	unused
36	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X908M	4
37	AMP	1534594-1	1.2x0.63F	VT	0.35	TESLA	MAT-120-240	X908M	5
38	AMP	1534594-1	1.2x0.63F	BK	0.35	TESLA	MAT-120-240	X160	2
39	AMP	1534594-1	1.2x0.63F	GY	0.35	TESLA	MAT-120-240	X155A	8
40	AMP	1534594-1	1.2x0.63F	BU	0.35	TESLA	MAT-120-240	X155A	7
41	unused
42	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X154A	7
43	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X154A	8
44	unused
45	unused
46	AMP	1241418-4	6.3x0.8F	BK	5.00	AMP	1719043-1	G012	15
