X151

Tesla Part Number

1839944-00-A

Connector

AMP 9-2209520-9

Color

BK

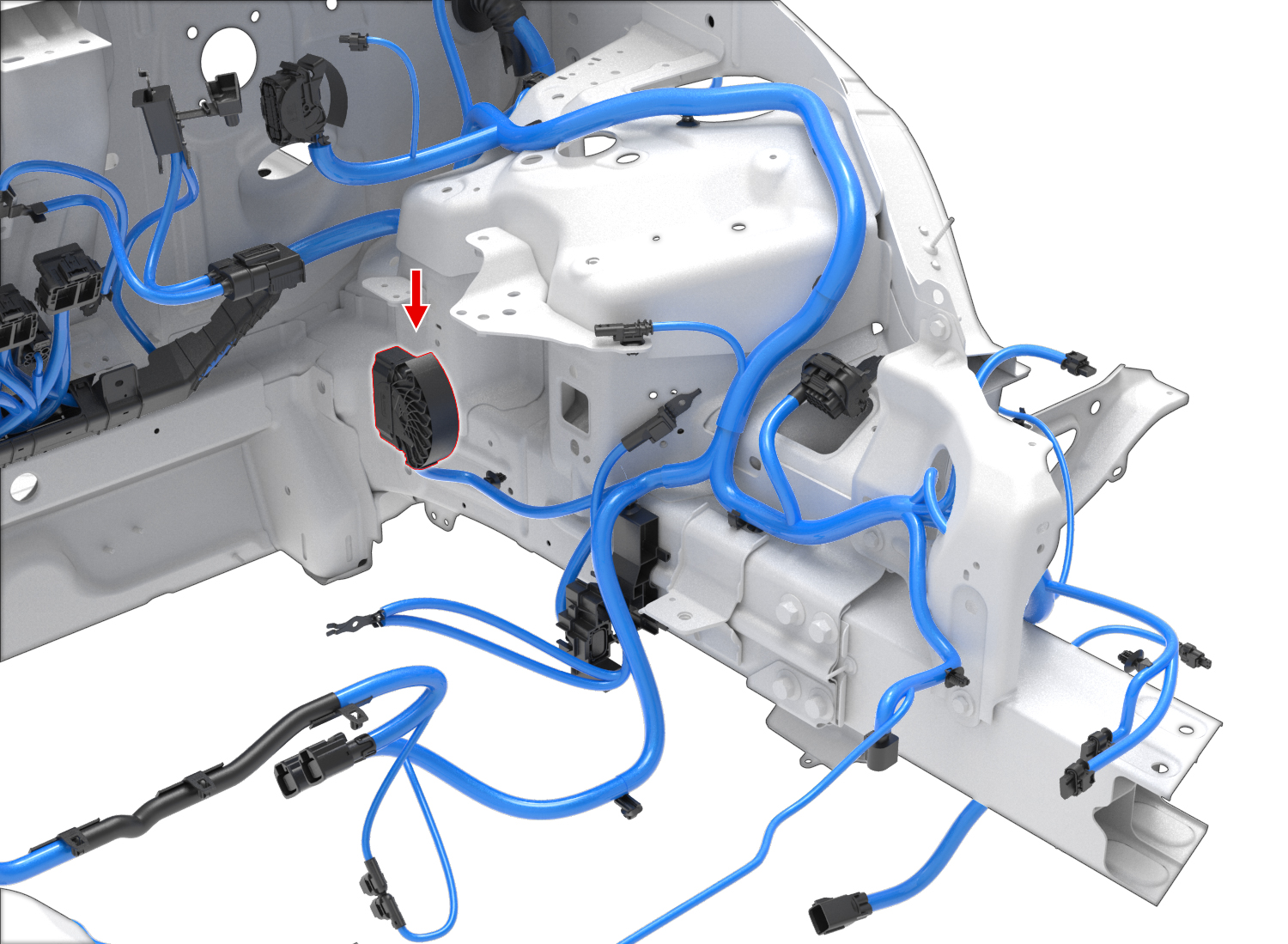

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1241418-4	6.3x0.8F	YE	5	AMP	1719043-2	X011	7
2
3
4
5	AMP	1534594-1	1.2x0.63F	YE/LTBU	0.35	TESLA	MAT-120-240	X010	14
6
7	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X154A	8
8
9
10
11	AMP	1534594-1	1.2x0.63F	DKGN/WH	0.35	TESLA	MAT-120-240	X037	14
12
13
14	AMP	1241418-4	6.3x0.8F	BK	5	AMP	1719043-2	G011	15
15
16
17
18
19	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X010	29
20
21	AMP	1534594-1	1.2x0.63F	BU	0.35	TESLA	MAT-120-240	X155A	7
22	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X908M	4
23	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240	X908M	21
24	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X154A	7
25	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240	X037	15
26	AMP	1534594-1	1.2x0.63F	GY	0.35	TESLA	MAT-120-240	X155A	8
27
28
29
30	AMP	1241414-1	6.3x0.8F	WH	2.00	AMP	1394511-1	X010	91
31
32
33
34
35
36	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X010	71
37	AMP	1534594-1	1.2x0.63F	VT	0.35	TESLA	MAT-120-240	X908M	5
38
39	AMP	1534594-1	1.2x0.63F	TN	0.35	TESLA	MAT-120-240	X908M	20
40
41
42
43
44
45
46	AMP	1241414-1	6.3x0.8F	BK	2.00	AMP	1394511-1	G011	13
