X901F

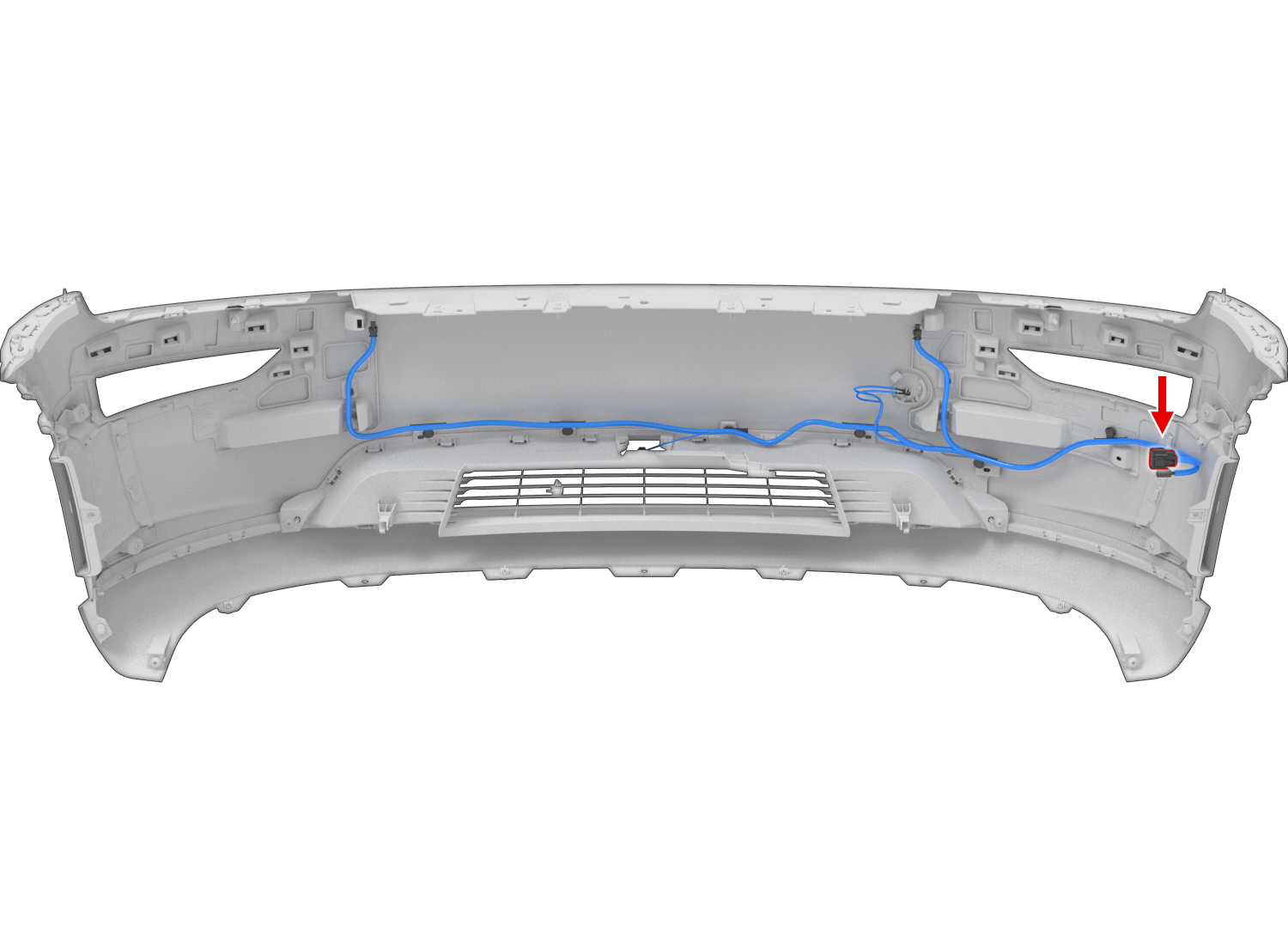

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X254 | 1 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.35 | TESLA | MAT-120-240 | X254 | 2 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X255 | 1 |
| 4 | MOLEX | 33012-3002 | 1.5x0.8F | BK | 1.00 | TESLA | MAT-120-240 | X356 | 1 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | GY | 0.35 | TESLA | MAT-120-240 | X255 | 2 |
| 6 | MOLEX | 33012-3002 | 1.5x0.8F | RD | 1.00 | TESLA | MAT-120-240 | X355 | 1 |
