X942M

Tesla Part Number

1849227-00-B

Connector

KSE K30M31111

Color

NA

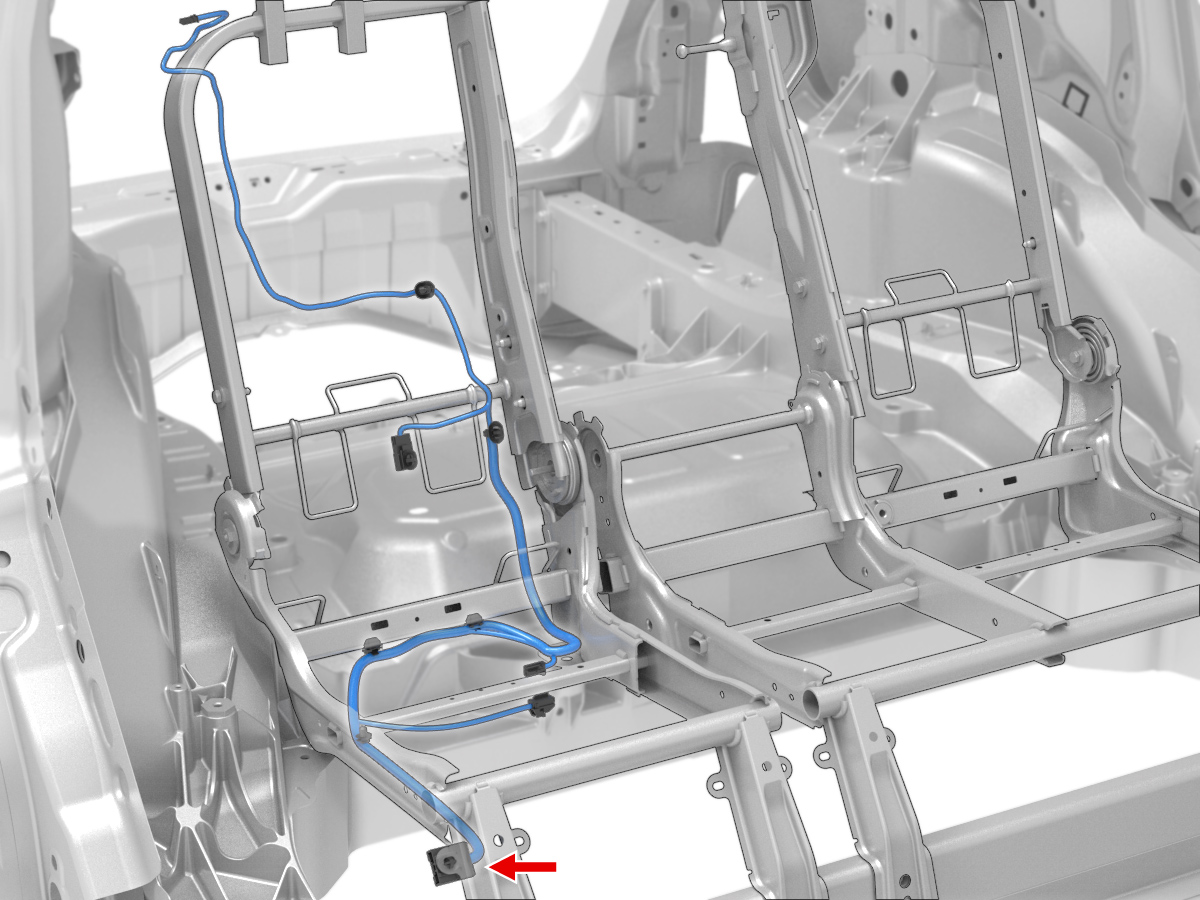

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X667	1
2	unused
3	unused
4	unused
5	unused
6	SUMITOMO	8100-3623	0.64x0.64M	YE	0.50			X677	2
7	unused
8	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X667	2
9	unused
10	unused
11	unused
12	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50			X677	1
13	unused
14	unused
15	SUMITOMO	8230-4923	1.5x0.6M	GY	2.00			X667	3
16	unused
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X674	1
19	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X643	1
20	unused
21	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35
22	unused
23	unused
24	unused
25	unused
26	unused
