X901M

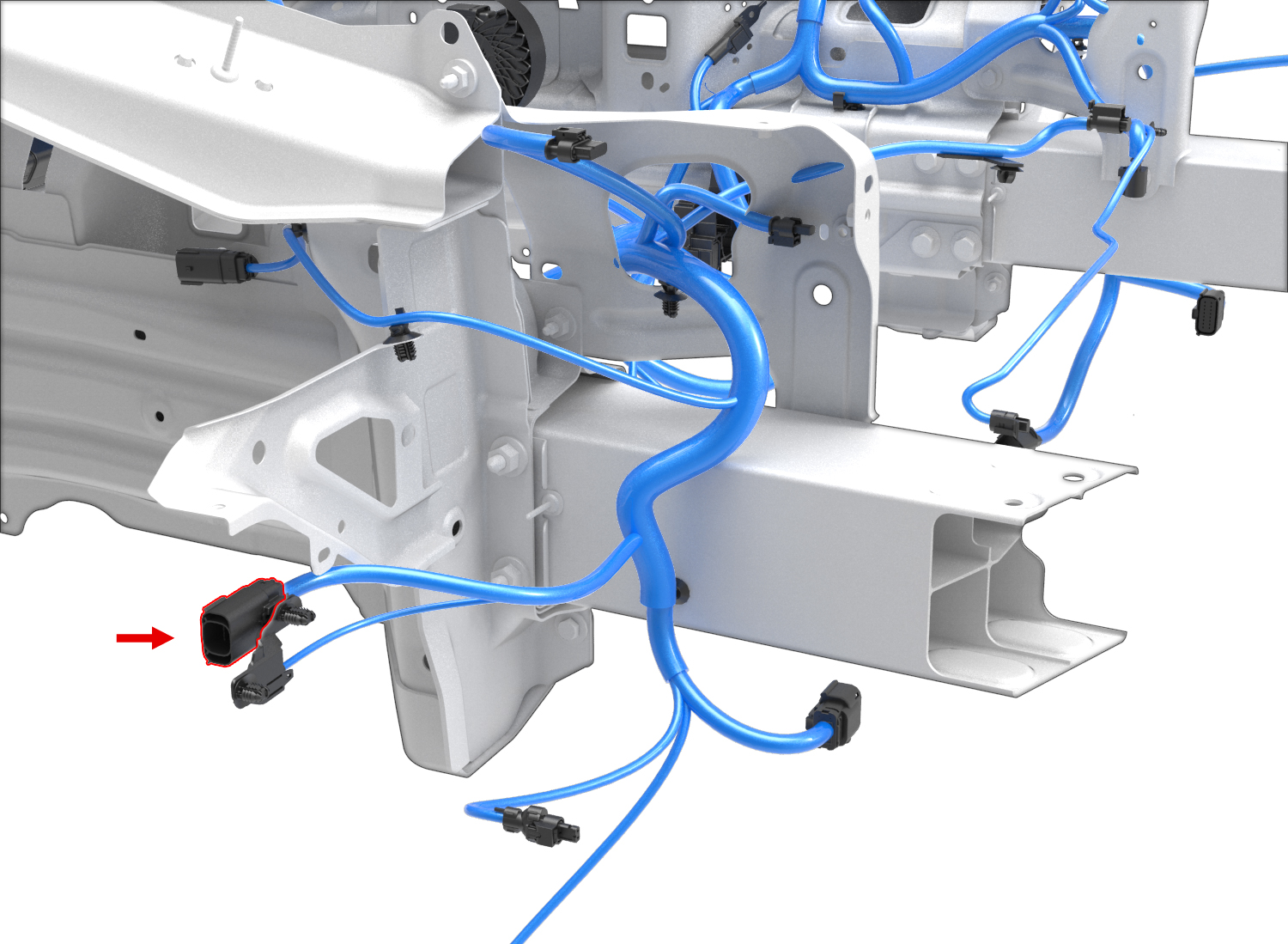

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | MOLEX | 33000-0002 | 1.5x0.8M | BK | 1.00 | TESLA | MAT-120-240 | X010 | 87 |
| 5 | |||||||||
| 6 | MOLEX | 33000-0002 | 1.5x0.8M | RD | 1.00 | TESLA | MAT-120-240 | X010 | 84 |
