X497

Tesla Part Number
1894422-00-B
Connector
HIRSCHMANN 805-122-534
Color
BK

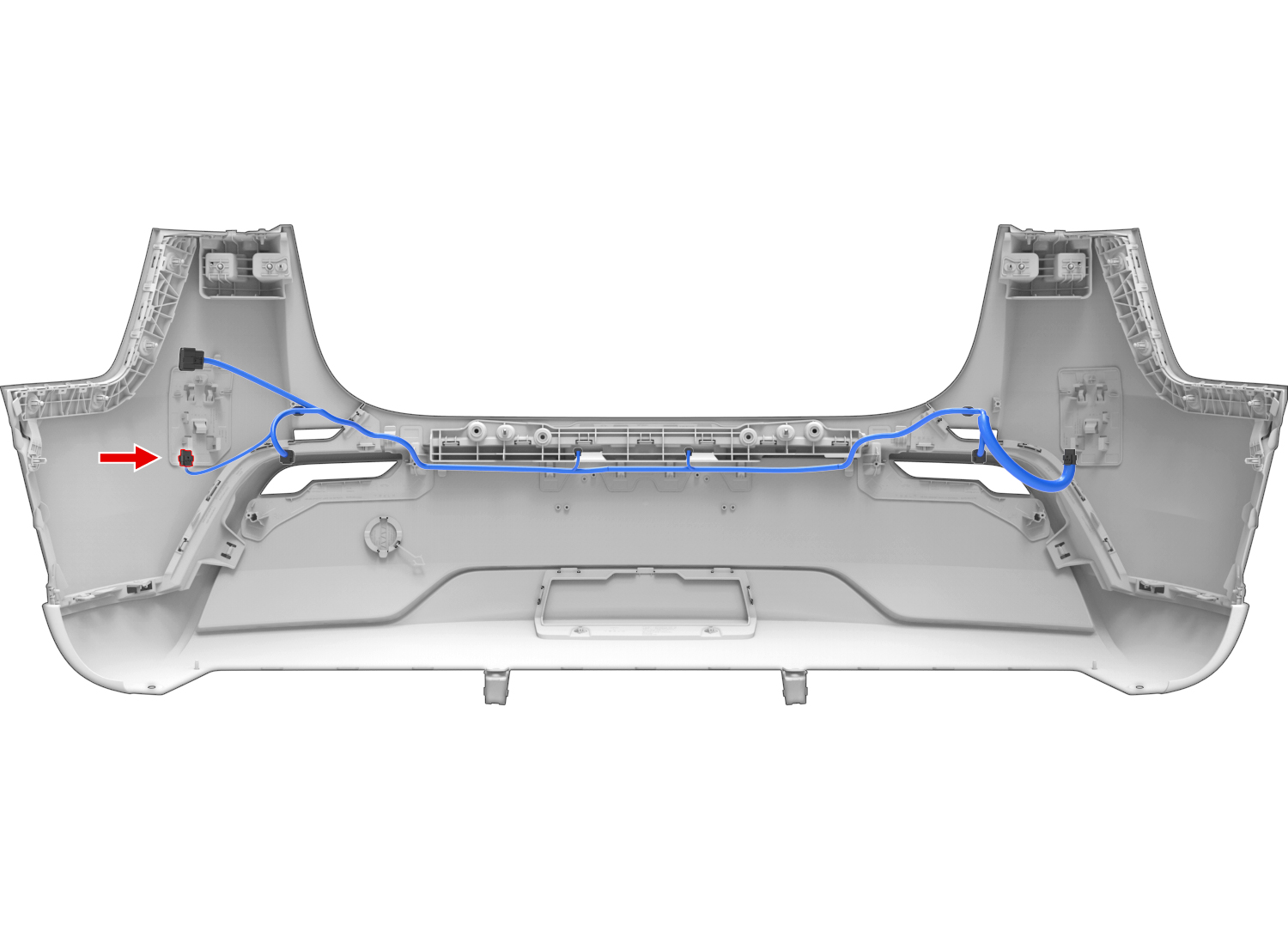

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSWH0.35DELPHI13887349X949F15
2DELPHI139591201.2x0.6FSGY0.35DELPHI13887349X949F14
3DELPHI139591201.2x0.6FSBK0.35DELPHI13887349
4DELPHI139591201.2x0.6FSRD0.35DELPHI13887349X949F6
