X264

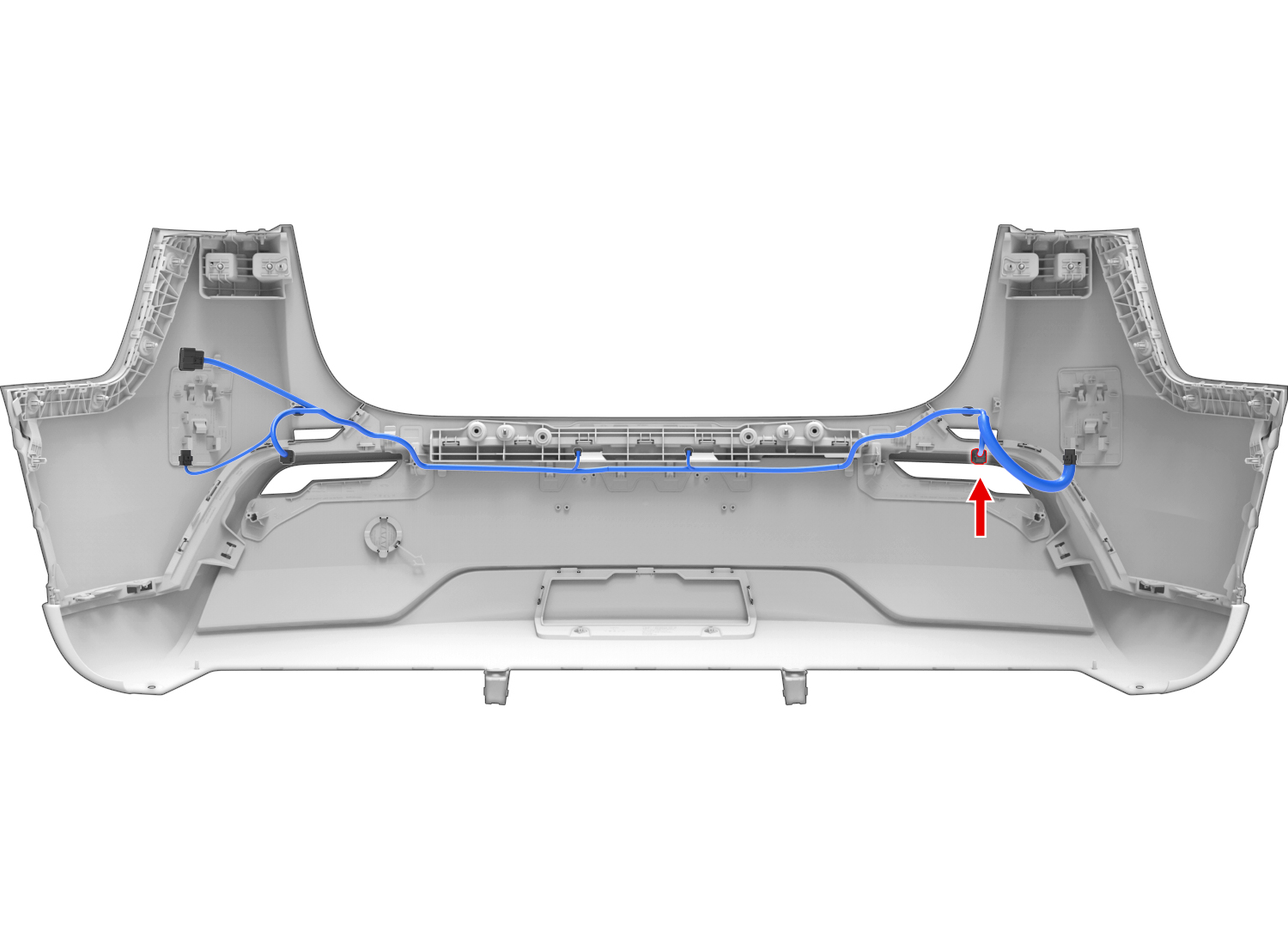

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35410019 | 1.2x0.6F | TN | 0.35 | TESLA | MAT-120-190 | X265 | 5 |
| 2 | DELPHI | 35410019 | 1.2x0.6F | RD | 0.35 | TESLA | MAT-120-190 | X949F | 16 |
| 3 | |||||||||
| 4 | DELPHI | 35410019 | 1.2x0.6F | VT | 0.35 | TESLA | MAT-120-190 | X949F | 3 |
| 5 | |||||||||
| 6 | DELPHI | 35410019 | 1.2x0.6F | WH | 0.35 | TESLA | MAT-120-190 | X265 | 7 |
| 7 | |||||||||
| 8 | DELPHI | 35410019 | 1.2x0.6F | BK | 0.35 | TESLA | MAT-120-190 |
