X528

Tesla Part Number

1079658-00-A

Connector

KUM PH845-07010

Color

WH

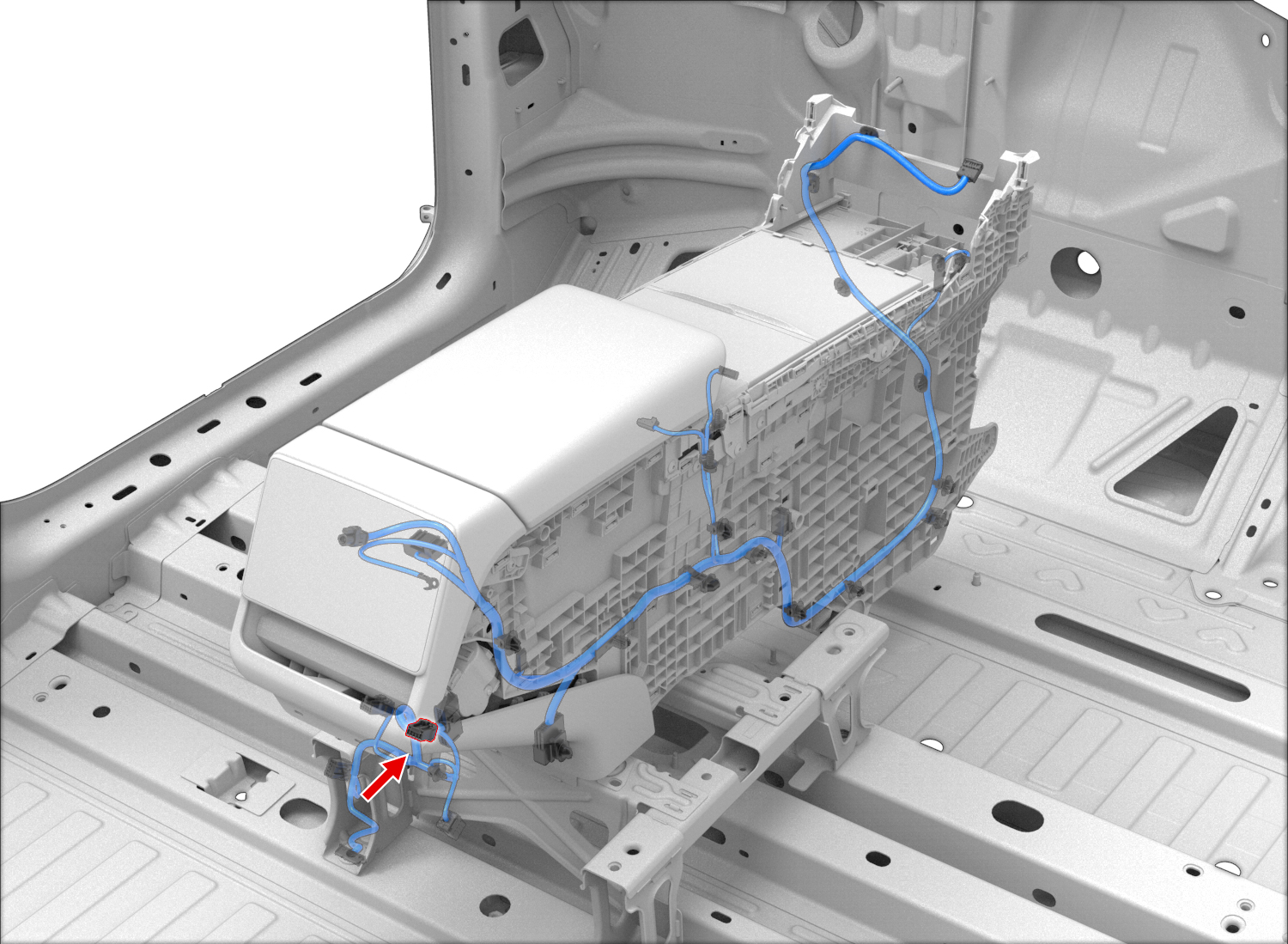

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
1	unused
2	unused
2	unused
3	KUM	MT095-29080	0.5x0.5F	YE	0.35			X501	21
3	KUM	MT095-29080	0.5x0.5F	YE	0.35			X501	21
4	KUM	MT095-29080	0.5x0.5F	RD	0.35			X501	23
4	KUM	MT095-29080	0.5x0.5F	RD	0.35			X501	23
5	KUM	MT095-29080	0.5x0.5F	BU	0.35			X501	24
5	KUM	MT095-29080	0.5x0.5F	BU	0.35			X501	24
6	KUM	MT095-29080	0.5x0.5F	BN	0.35			X501	31
7	KUM	MT095-29080	0.5x0.5F	VT	0.35			X501	22
