X162A

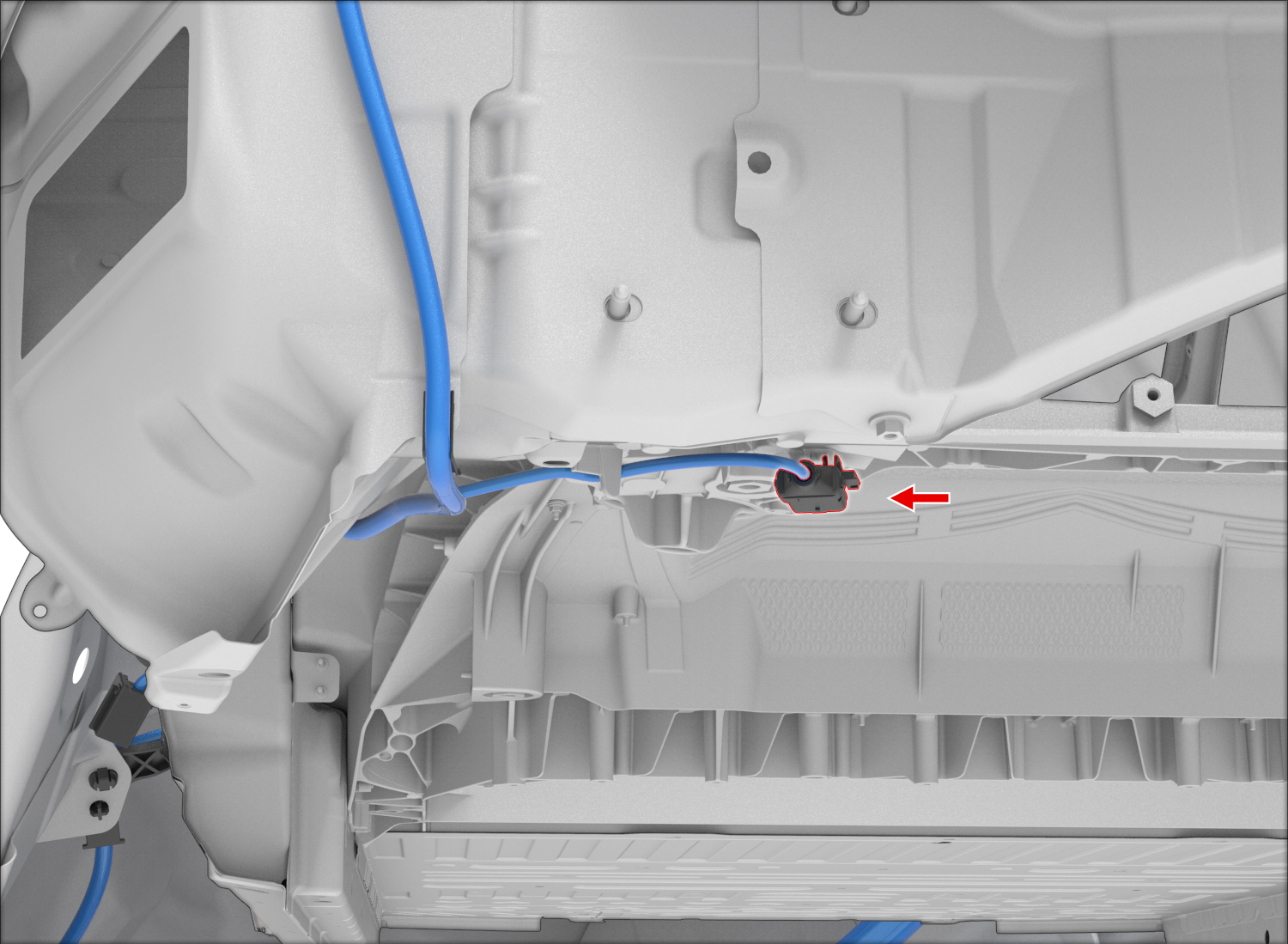

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 33501792 | 1.5x0.8 | BU | 0.35 | MOLEX | MAT-120-280 | X935F | 18 |
| 2 | DELPHI | 33501792 | 1.5x0.8 | BN | 0.35 | MOLEX | MAT-120-280 | X935F | 19 |
| 3 | DELPHI | 10756743 | 2.8x0.8 | RD | 1.50 | TESLA | MAT-140-420 | X031 | 2 |
| 4 | DELPHI | 10756743 | 2.8x0.8 | GY | 1.50 | TESLA | MAT-140-420 | X031 | 17 |
| 5 | unused | ||||||||
| 6 | unused | ||||||||
