X602

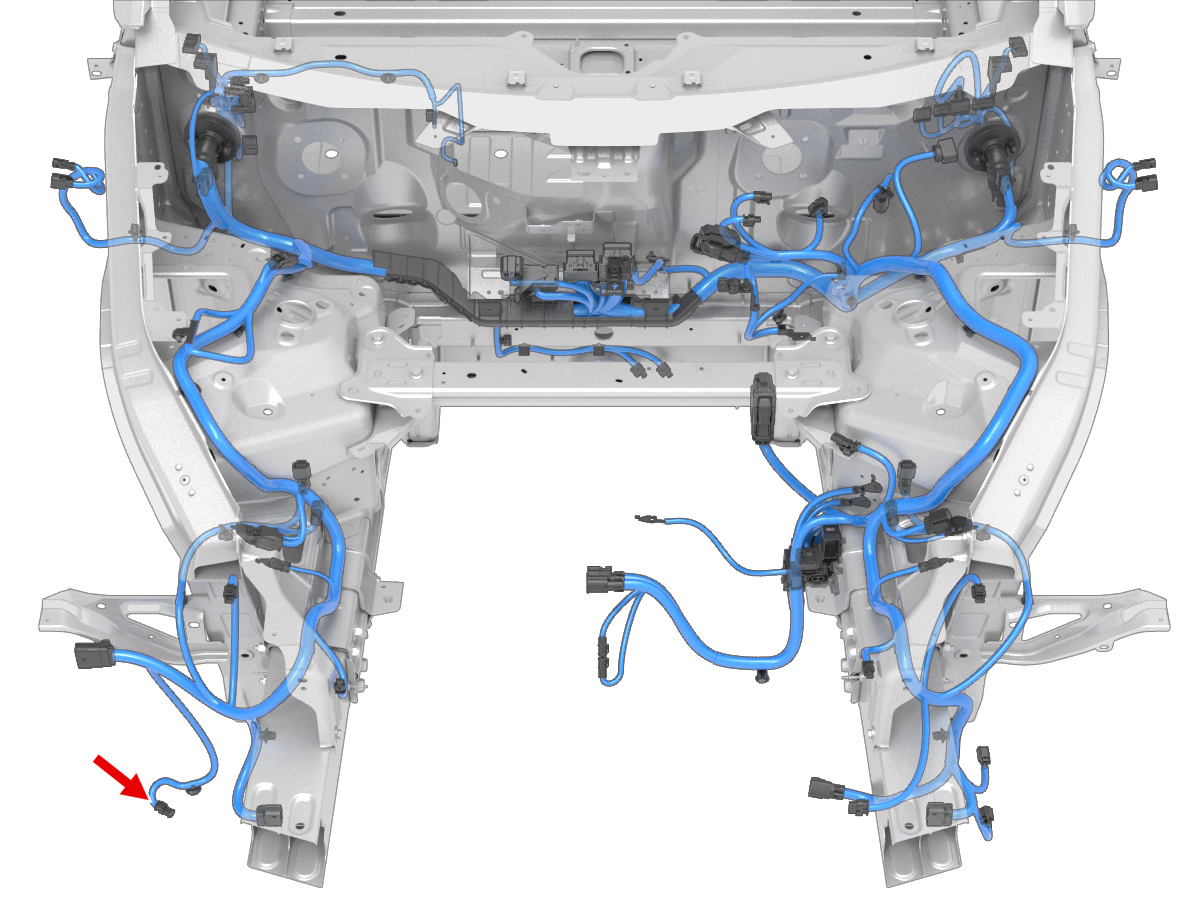

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35555156 | 1.2x0.6FS | GN | 1.00 | DELPHI | 13887350 | X908M | 14 |
| 2 | DELPHI | 35555156 | 1.2x0.6FS | BU | 1.00 | DELPHI | 13887350 | X908M | 26 |
