X153

Tesla Part Number

2031640-00-A

Connector

AMP 6-2209520-8

Color

BK

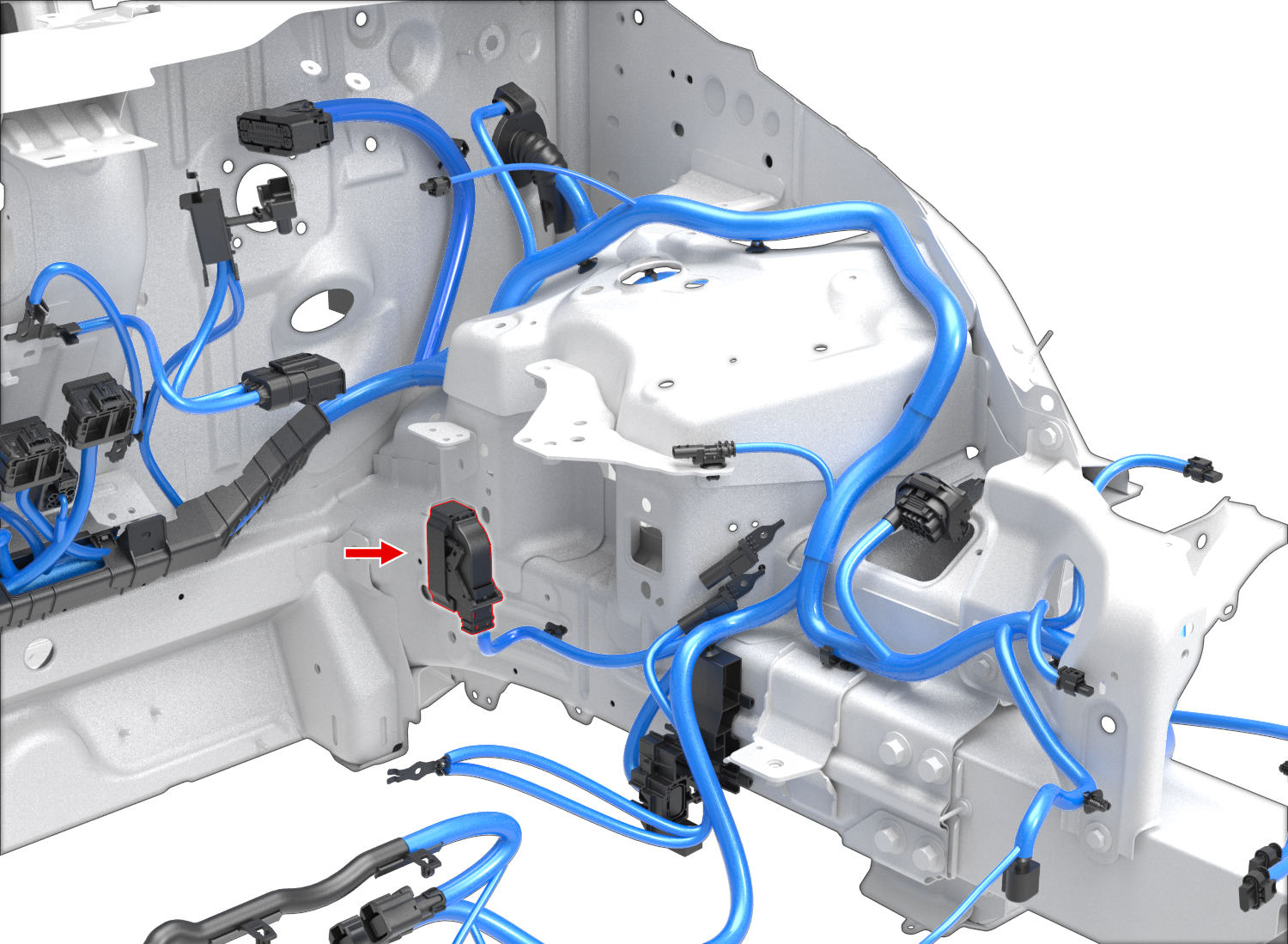

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1241418-4	6.3x0.8F	RD	5.00	AMP	1719043-1	X012	5
2
3
4	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X010	6
5	unused
6	AMP	1534594-1	1.2x0.63F	DKGN/WH	0.35	TESLA	MAT-120-240	X037	14
7	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240	X037	15
8	unused
9	unused
10	unused
11	unused
12
13
14	AMP	1241418-4	6.3x0.8F	BK	5.00	AMP	1719043-1	G011	15
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
21	unused
22	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X158B	2
23	unused
24	AMP	1534594-1	1.2x0.63F	YE/LTBU	0.35	TESLA	MAT-120-240	X010	54
25	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X010	55
26	unused
27	unused
28	unused
29	unused
30	AMP	1241418-4	6.3x0.8F	BU	5.00	AMP	1719043-1	X012	4
31	unused
32	unused
33	unused
34	unused
35	unused
36	AMP	1534594-1	1.2x0.63F	BN	0.35	TESLA	MAT-120-240	X158B	3
37	unused
38	unused
39	unused
40	AMP	1534594-1	1.2x0.63F	RD	0.35	TESLA	MAT-120-240	X158B	1
41	unused
42	unused
43	unused
44	unused
45	unused
46	AMP	1241414-1	6.3x0.8F	BK	2.50	AMP	1823111-1	G011	11
