X031

Tesla Part Number

1906766-01-A

Connector

DELPHI 35663317

Color

GY

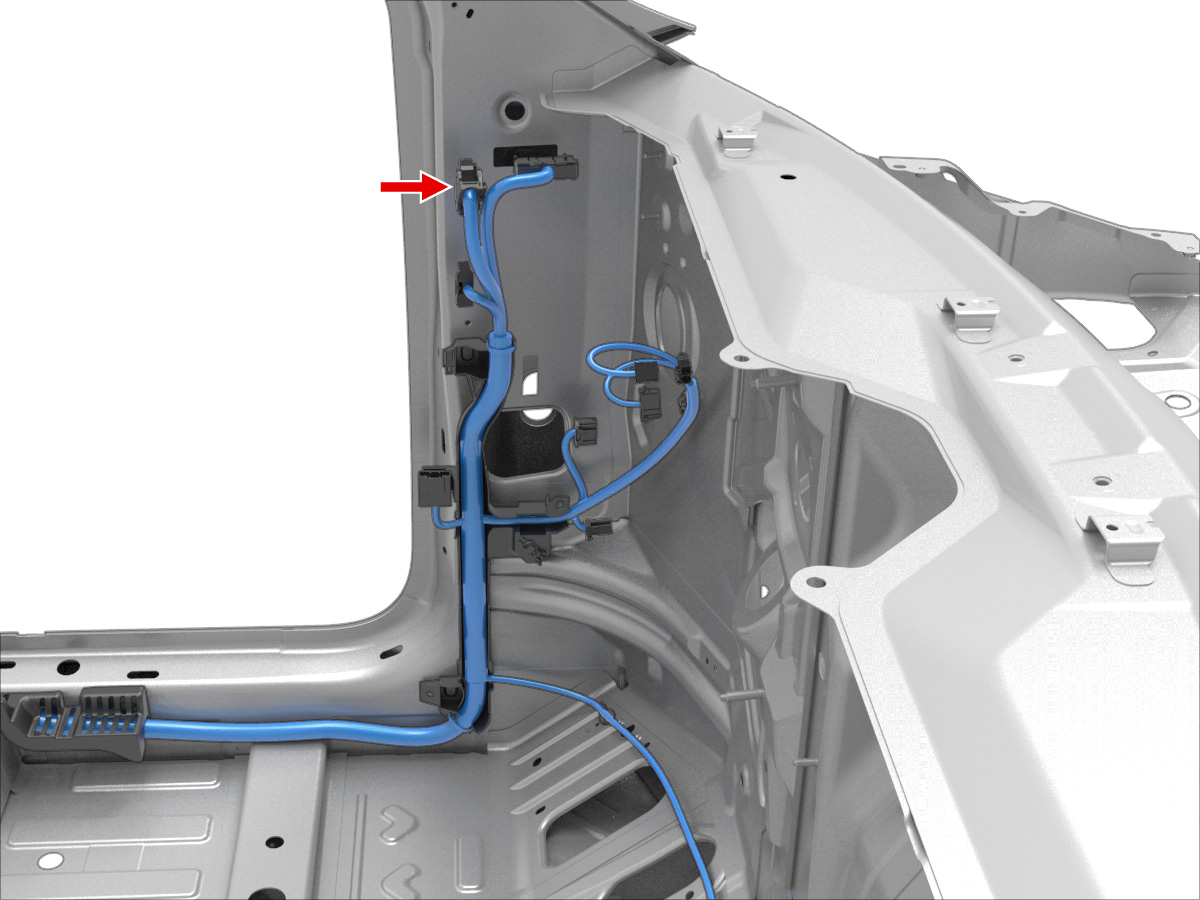

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X924M	2
2	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X162A	3
3	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X930F	1
4	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X924M	10
5	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X930F	10
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X943F	19
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X924M	3
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X924M	4
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X935F	40
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X935F	41
12	unused
13	unused
14	unused
15	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X924M	1
16	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X943F	5
17	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X162A	4
18	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00			X930F	11
19	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X924M	9
20	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X924M	15
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X930F	8
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X924M	23
24	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X924M	7
25	unused
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X943F	12
27	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X943F	16
28	unused
29	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X909F	3
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X909F	4
31	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X353	8
32	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X353	5
33	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X935F	2
34	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X935F	1
35	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X935F	17
36	SUMITOMO	8240-0214	1.5x0.64F	GN	2.00			X935F	16
37	unused
38	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X943F	8
39	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X680	3
40	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X673C	2
41	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X939M	4
42	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935F	31
43	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X935F	30
44	SUMITOMO	8100-3625	0.64x0.64F	YE/DKBU	0.35			X201	72
45	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X201	71
