X943F

Tesla Part Number

1849226-00-C

Connector

KSE K20F01221

Color

NA

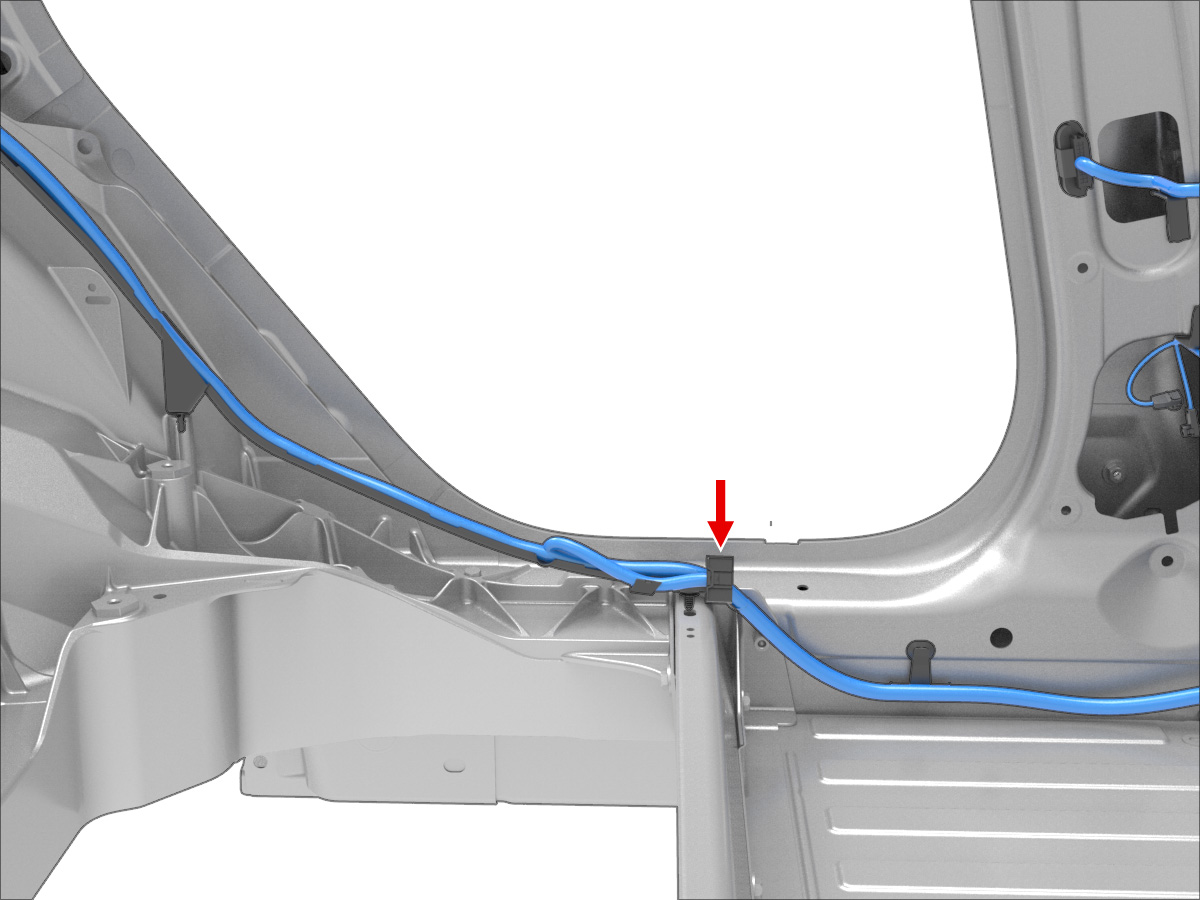

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X030B	7
2	unused
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X039	3
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X031	16
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X030A	31
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X031	38
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935F	12
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X935F	13
11	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X030A	32
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X031	26
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X039	5
14	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X030A	29
15	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X030B	6
16	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X031	27
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X030A	19
19	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X031	6
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X030A	5
21	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X039	11
22	unused
23	unused
24	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X039	33
25	unused
26	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			G031	9
