X956F

Tesla Part Number
2002672-00-A
Connector
AMP 2401554-1
Color
NA

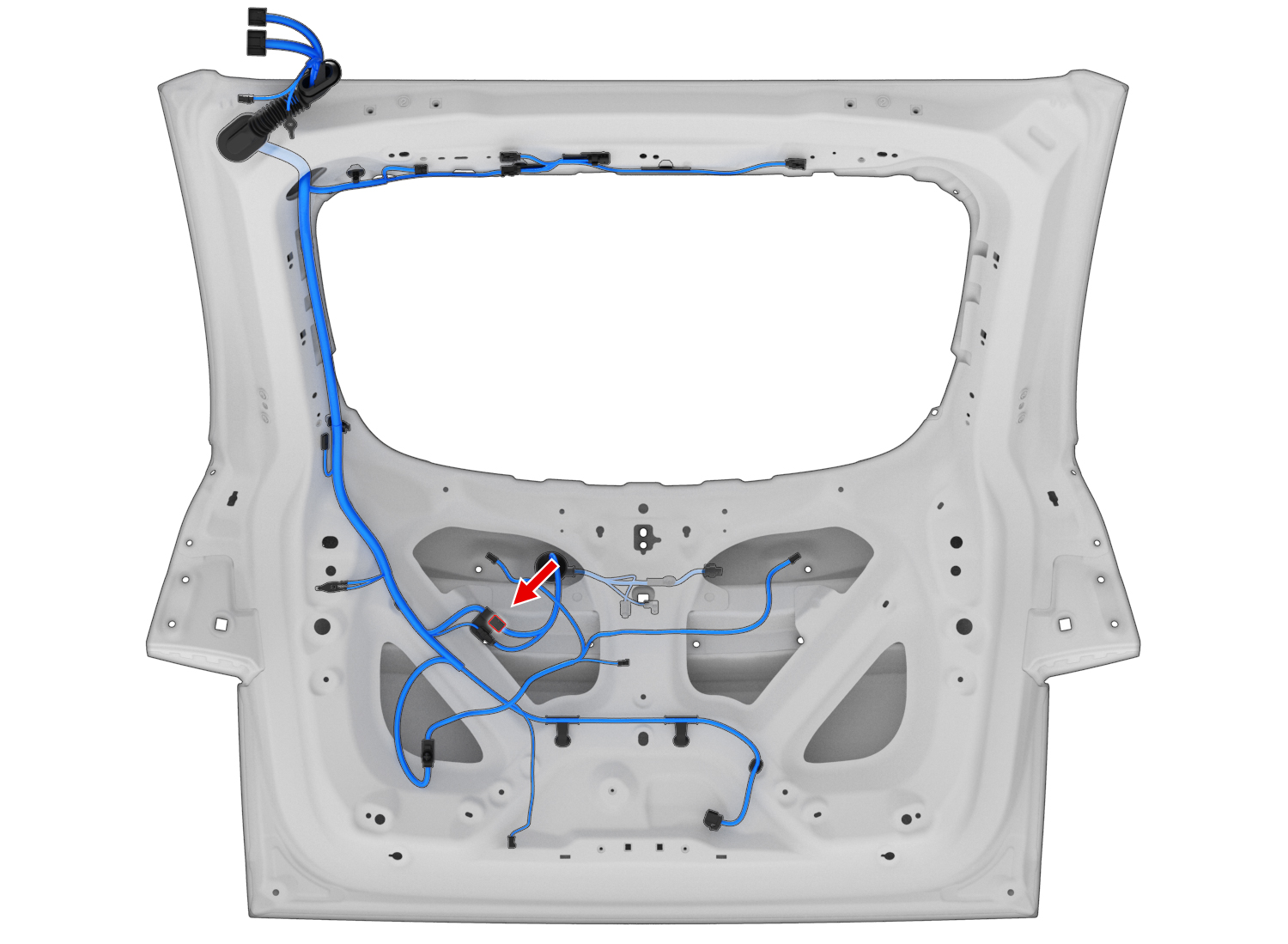

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2389205-20.63x0.63FBK0.50X2711
2AMP2389205-10.63x0.63FGY0.35X2714
3AMP2389205-10.63x0.63FRD0.35X2713
4AMP2389205-10.63x0.63FYE0.35X2717
5AMP2389205-10.63x0.63FVT0.35X2715
6AMP2389205-10.63x0.63FRD0.35X2716
7AMP2389205-10.63x0.63FBU0.35X2712
8AMP2389205-10.63x0.63FYE0.35X3471
9AMP2389205-10.63x0.63FBK0.35X3472
10unused
11AMP2389205-10.63x0.63FBU0.35X274A1
12AMP2389205-10.63x0.63FBK0.35X274A2
