X943M

Tesla Part Number

1849227-00-B

Connector

KSE K30M31111

Color

NA

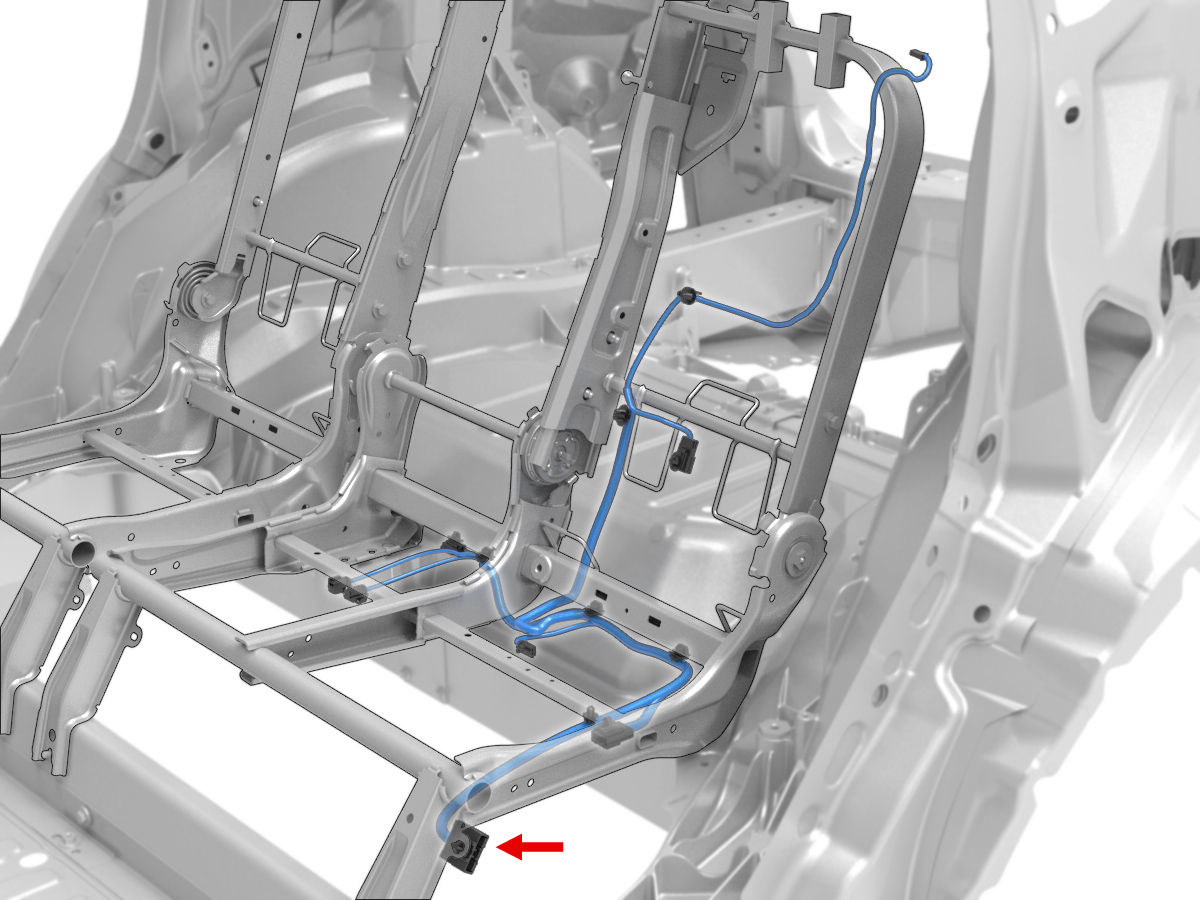

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X669	1
2	unused
3	unused
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X945M	12
5	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X945M	10
6	unused
7	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X945M	1
8	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X669	2
9	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X945M	2
10	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X945M	8
11	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X676	2
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X945M	9
13	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X673	1
14	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X945M	3
15	SUMITOMO	8230-4923	1.5x0.6M	GY	2.00			X669	3
16	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X945M	7
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X675	1
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X945M	4
20	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X945M	5
21	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50
22	unused
23	unused
24	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X642	1
25	unused
26	SUMITOMO	8230-4923	1.5x0.6M	BK	1.50
