X921F

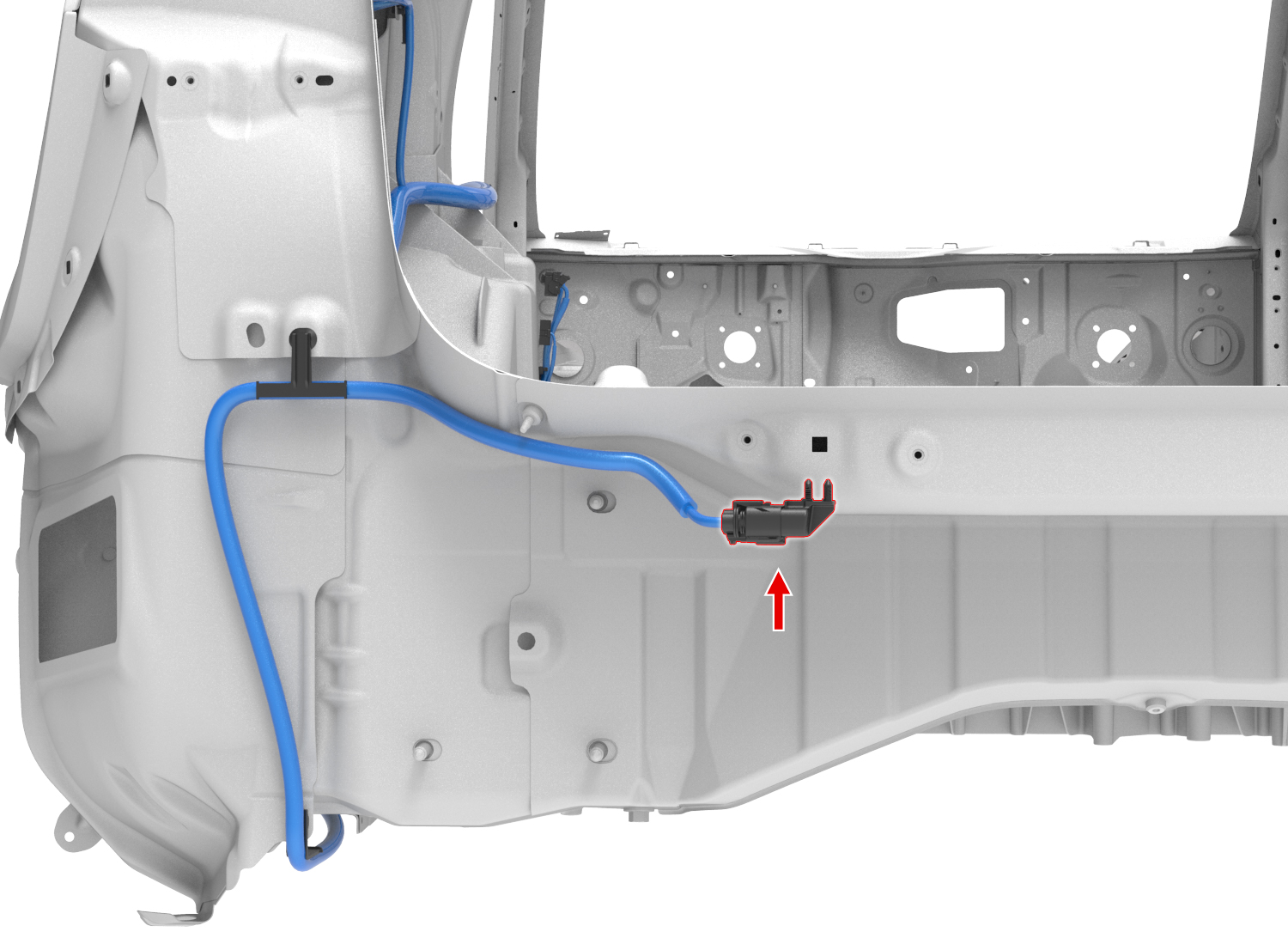

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X030A | 7 |
| 3 | MOLEX | 33012-3001 | 1.5x0.8F | RD | 1.50 | TESLA | MAT-120-240 | X030B | 8 |
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | DELPHI | 10863886 | 6.35F | BK | 4.00 | KSE | K60F00601 | G041 | 2 |
| 8 | DELPHI | 10810733 | 2.8x0.8F | RD | 3.00 | QSR | X-1039-002 | X030B | 11 |
| 9 | DELPHI | 13627267 | 2.8x0.8F | BU | 2.00 | QSR | X-1039-004 | X165 | 1 |
