X150C

Tesla Part Number

2045855-00-A

Connector

AMP 2478632-1

Color

BK

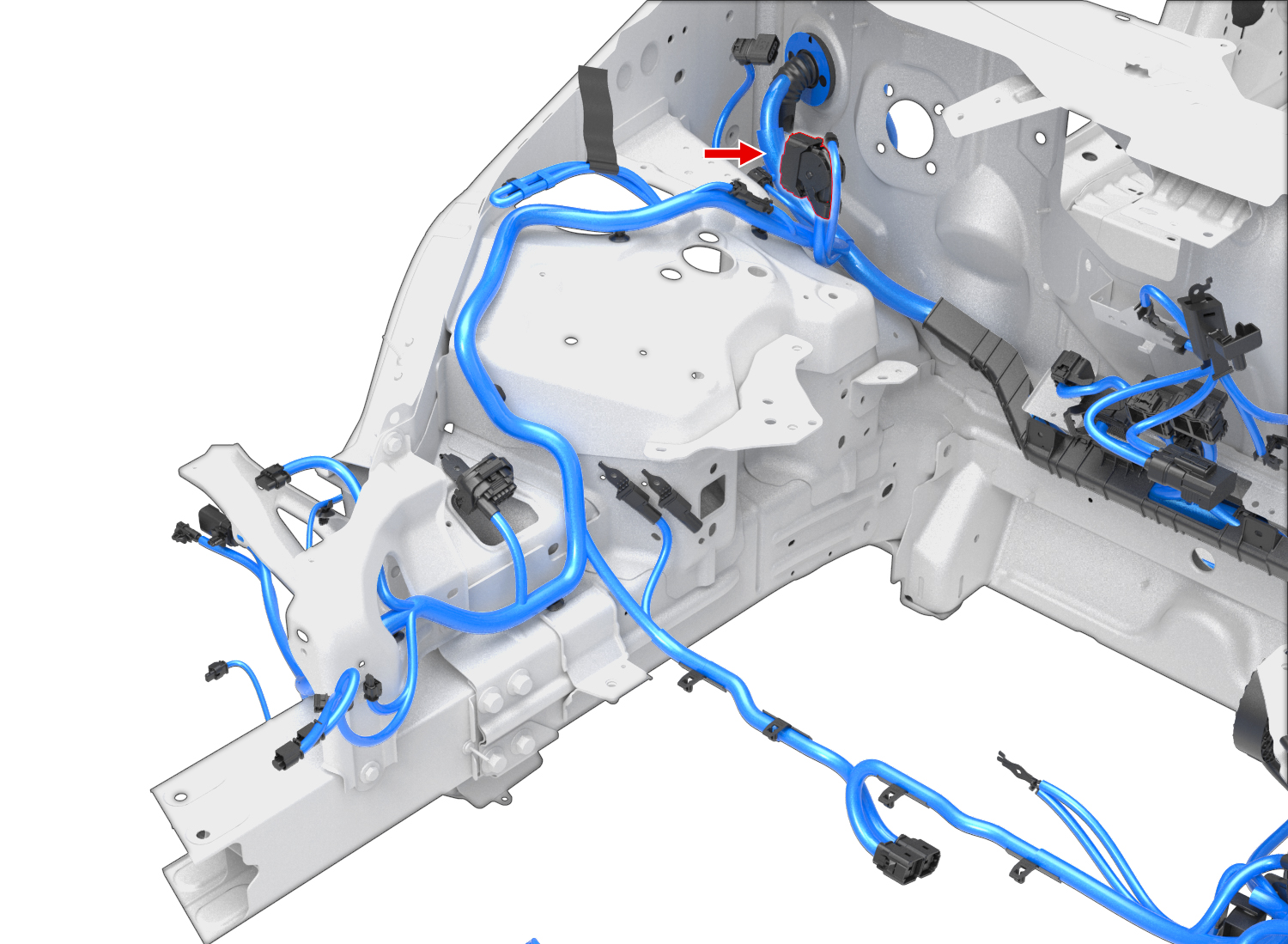

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1241418-4	6.3x0.8F	BK	5.00	AMP	1719043-2	G012	6
2
3	unused
4	unused
5	unused
6	unused
7	unused
8
9	AMP	1241418-4	6.3x0.8F	RD	5.00	AMP	1719043-2	X012	5
10	AMP	1564324-1	1.5x0.6FS	YE	0.35	AMP	1394133-1	X010	55
11	unused
12	unused
13	unused
14	unused
15	unused
16	AMP	1564324-1	1.5x0.6FS	GN	0.35	AMP	1394133-1
17	unused
18	AMP	1564324-1	1.5x0.6FS	YE/LTBU	0.35	AMP	1394133-1	X010	54
19	unused
20	AMP	1564324-1	1.5x0.6FS	YE	0.35	AMP	1394133-1	X010	6
21	unused
22
23	AMP	1564324-1	1.5x0.6FS	BU	0.35	AMP	1394133-1	X159C	2
24	unused
25	AMP	1564324-1	1.5x0.6FS	DKGN/WH	0.35	AMP	1394133-1
26	unused
