X271

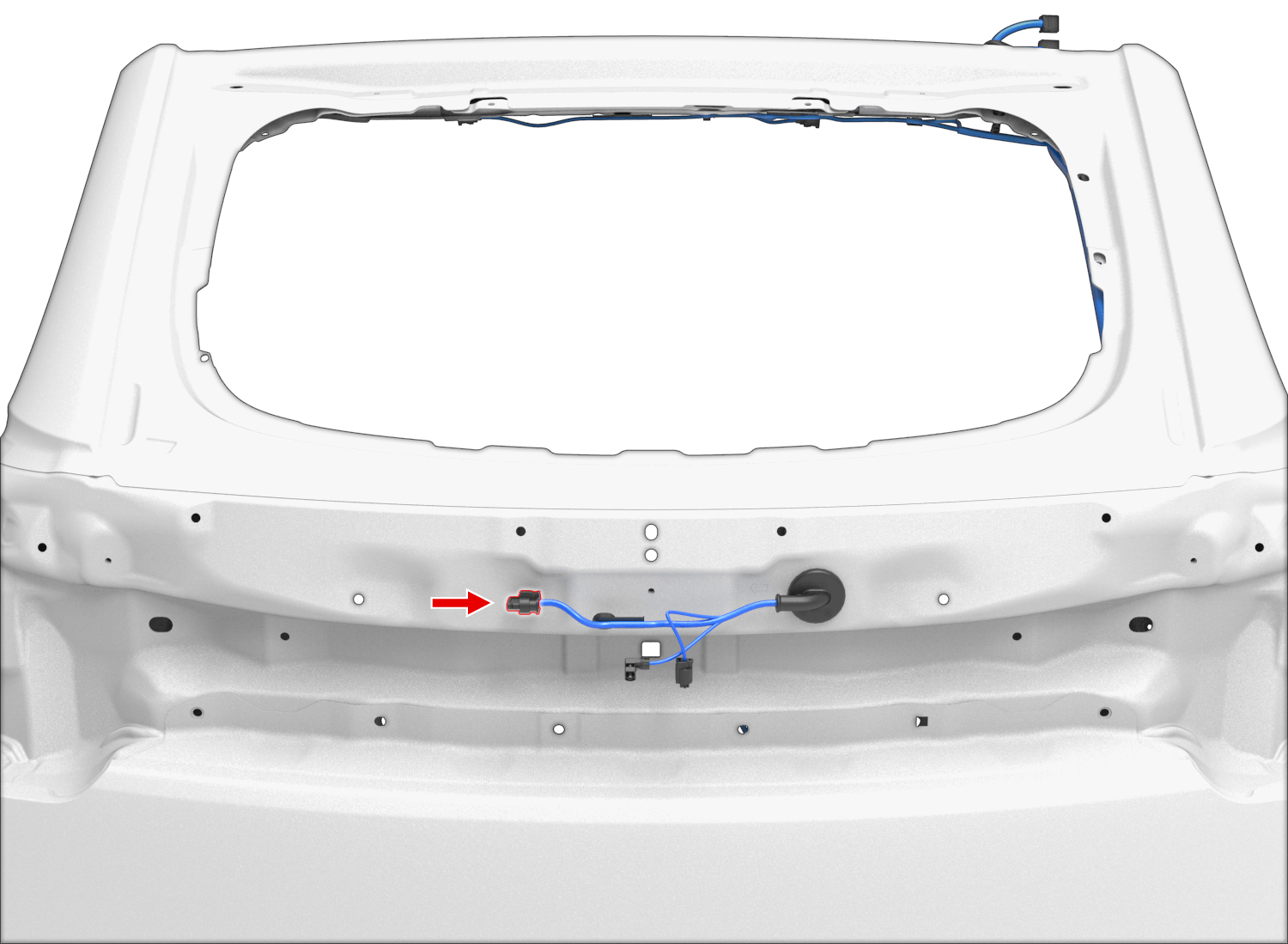

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | BK | 0.50 | AMP | 967067-1 | X956F | 1 |
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | BU | 0.35 | AMP | 967067-2 | X956F | 7 |
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | RD | 0.35 | AMP | 967067-2 | X956F | 3 |
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | GY | 0.35 | AMP | 967067-2 | X956F | 2 |
| 5 | AMP | 7-1452665-1 | 1.2x0.6FS | VT | 0.35 | AMP | 967067-2 | X956F | 5 |
| 6 | AMP | 7-1452665-1 | 1.2x0.6FS | RD | 0.35 | AMP | 967067-2 | X956F | 6 |
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X956F | 4 |
| 8 |
