X981F

Tesla Part Number

1849224-00-C

Connector

KSE K20F01121

Color

NA

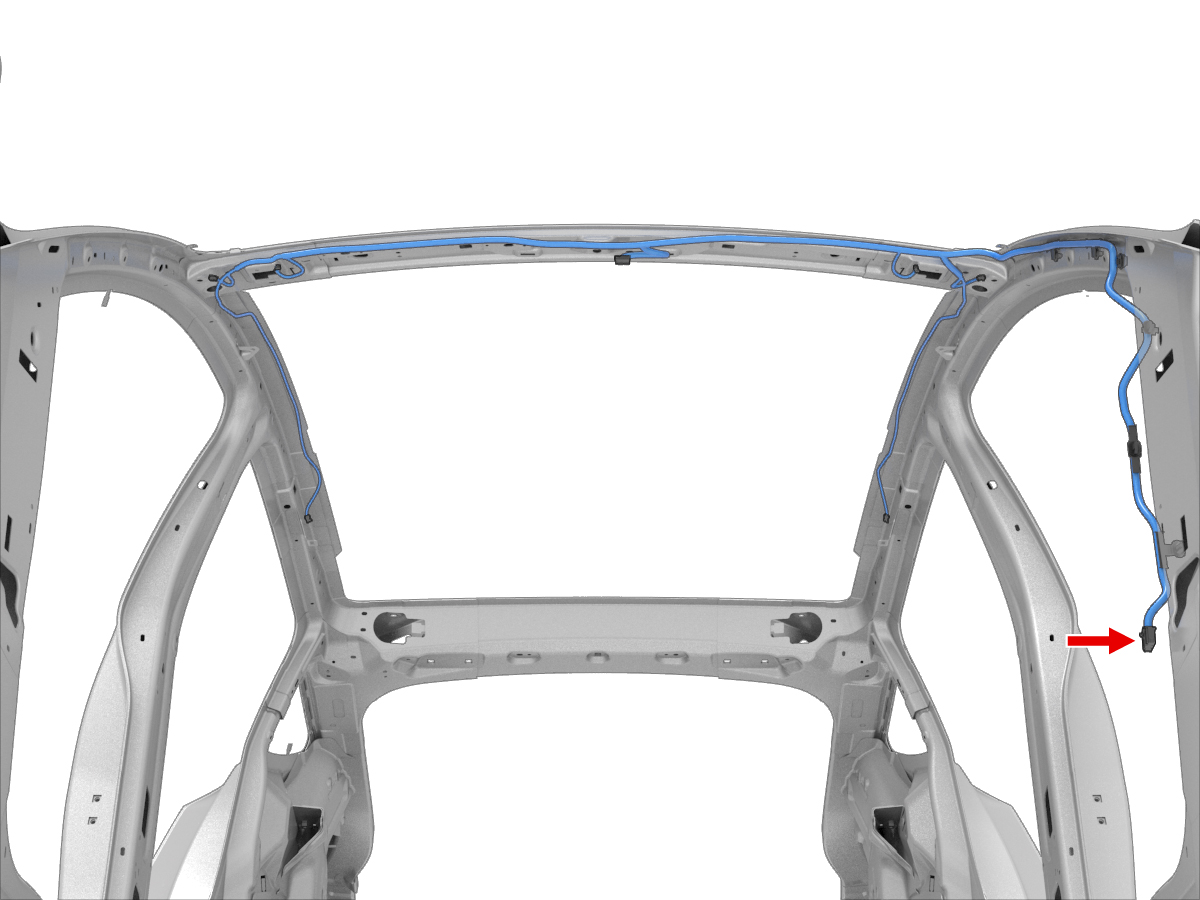

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X569	1
3	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X569	2
4	unused
5	unused
6	unused
7	unused
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X299	1
9	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35			X299	7
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X299	13
11	unused
12	unused
13	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X579	1
14	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X579	2
15	unused
16	unused
17	unused
18	unused
19	unused
20	unused
