X094

Tesla Part Number

1085876-00-B

Connector

AMP 1-2282337-5

Color

BK

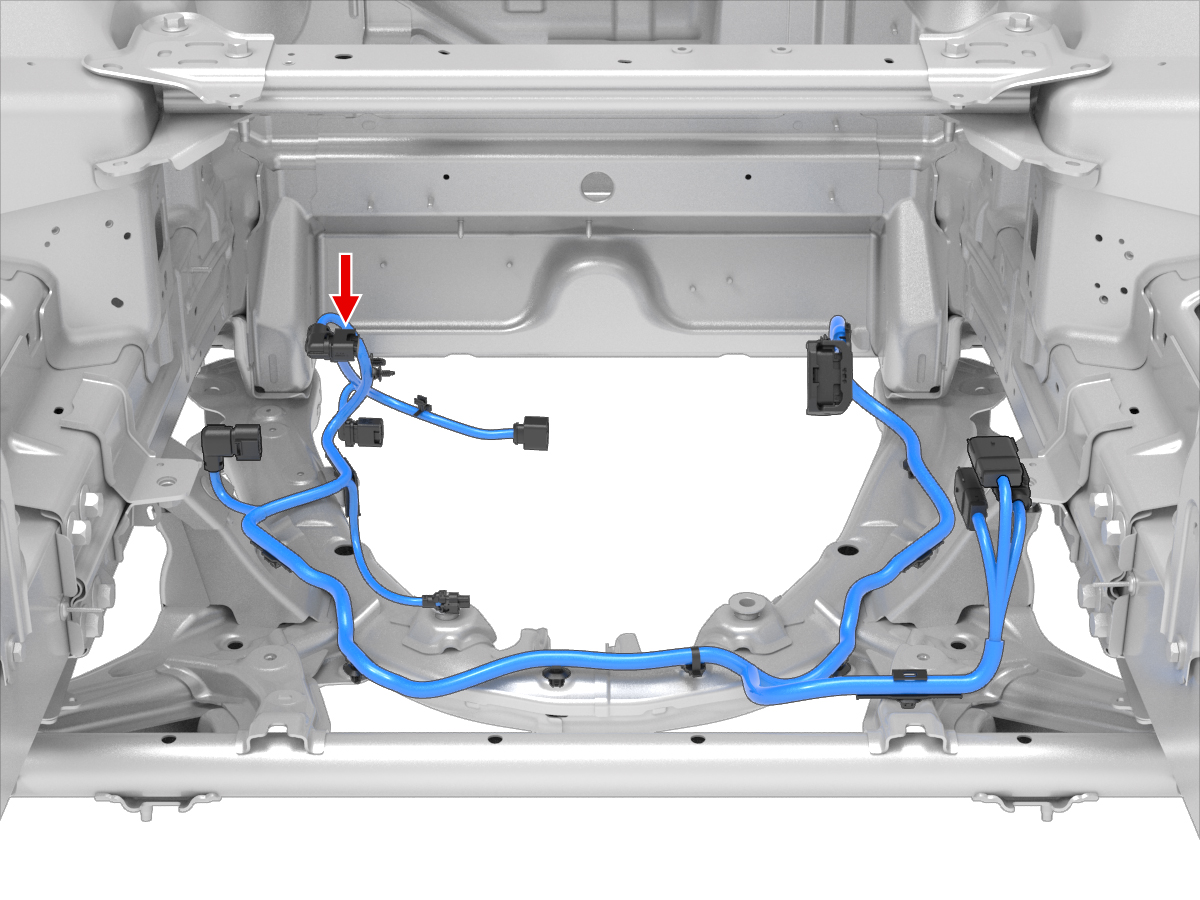

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3	AMP	7-1452665-2	1.2x0.6FS	YE	0.35	AMP	967067-2	X093	26
4	AMP	7-1452665-2	1.2x0.6FS	GN	0.35	AMP	967067-2	X093	17
5	AMP	7-1452665-2	1.2x0.6FS	VT	0.35	AMP	967067-2	X093	8
6
7
8	AMP	7-1452665-2	1.2x0.6FS	BU	0.35	AMP	967067-2	X093	16
9	AMP	7-1452665-2	1.2x0.6FS	RD	0.35	AMP	967067-2	X093	7
10	AMP	7-1452665-2	1.2x0.6FS	BN	0.35	AMP	967067-2	X093	27
