X050

Tesla Part Number

1517048-00-A

Connector

YAZAKI 7289-4104-40

Color

GY

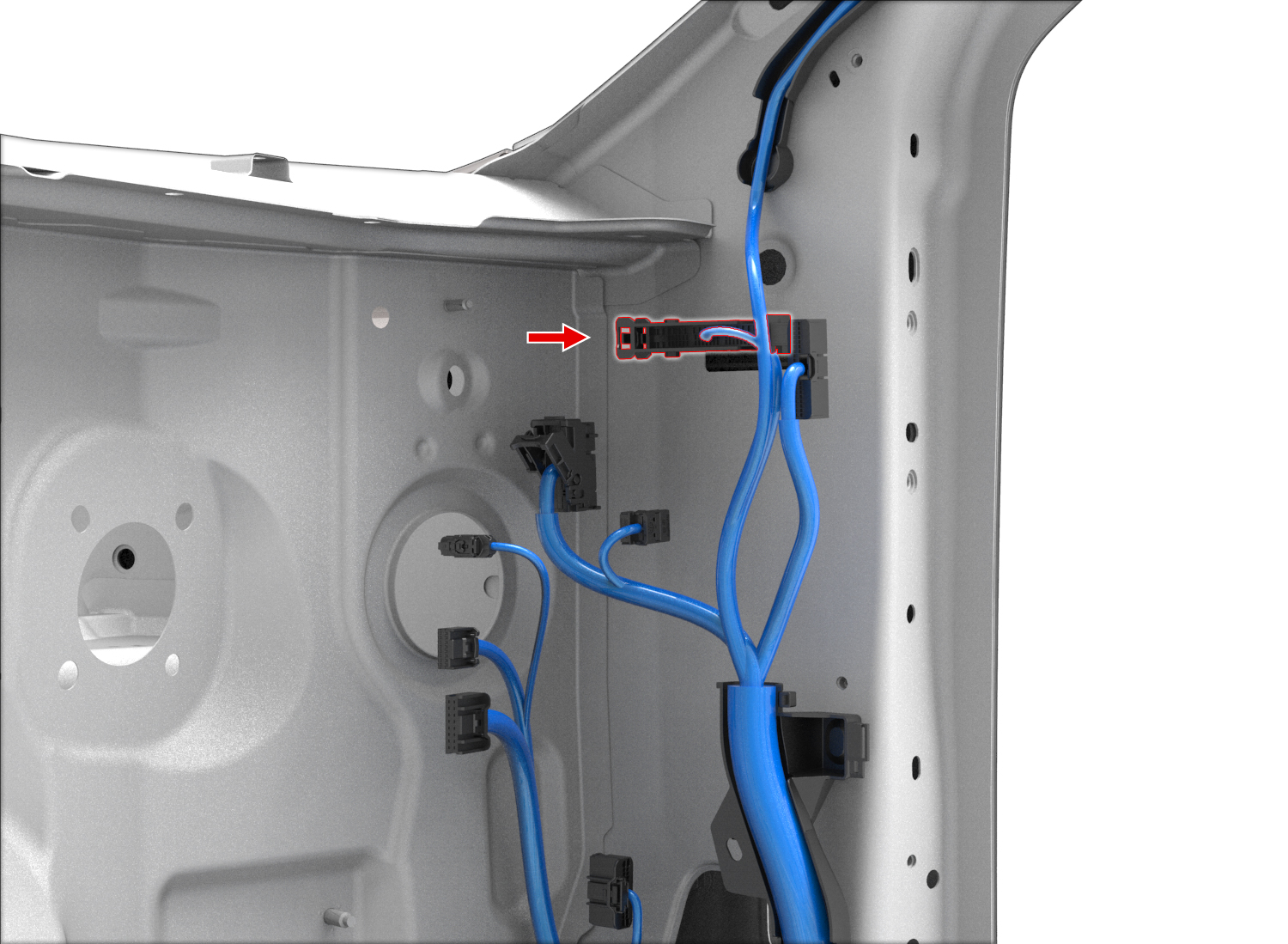

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8240-0215	1.5x0.64F	BN/WH	0.35			X959F	5
4	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X959F	6
5	unused
6	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X954M	11
7	unused
8	unused
9	unused
10	unused
11	unused
12	SUMITOMO	8240-0213	1.5x0.64F	GY	1.00			X953M	14
13	SUMITOMO	8240-0213	1.5x0.64F	RD	1.00			X953M	15
14	unused
15	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X926M	15
16	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X962M	7
17	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X962M	1
18	unused
19	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00			X098	18
20	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X494	2
21	unused
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X961M	2
23	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	16
24	unused
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926M	6
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X908F	12
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X908F	8
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X908F	10
29	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926M	13
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X926M	8
31	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926M	9
32	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X954M	14
33	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X098	15
34	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X098	16
35	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X657A	1
36	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	13
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X954M	15
38	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X954M	4
39	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X098	8
40	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X960M	11
41	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X960M	12
42	unused
43	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X961M	9
44	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X960M	1
45	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X562	1
46	unused
47	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X949M	16
48	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926M	5
49	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X908F	9
50	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X908F	11
51	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X908F	13
52	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954M	8
53	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X926M	21
54	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X926M	10
55	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X179	10
56	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X179	9
57	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X952M	7
58	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X952M	6
59	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X952M	12
60	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X952M	11
61	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X959F	11
62	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X354	8
63	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X354	5
