X952F

Tesla Part Number

1067989-00-A

Connector

MOLEX 33472-1606

Color

BK

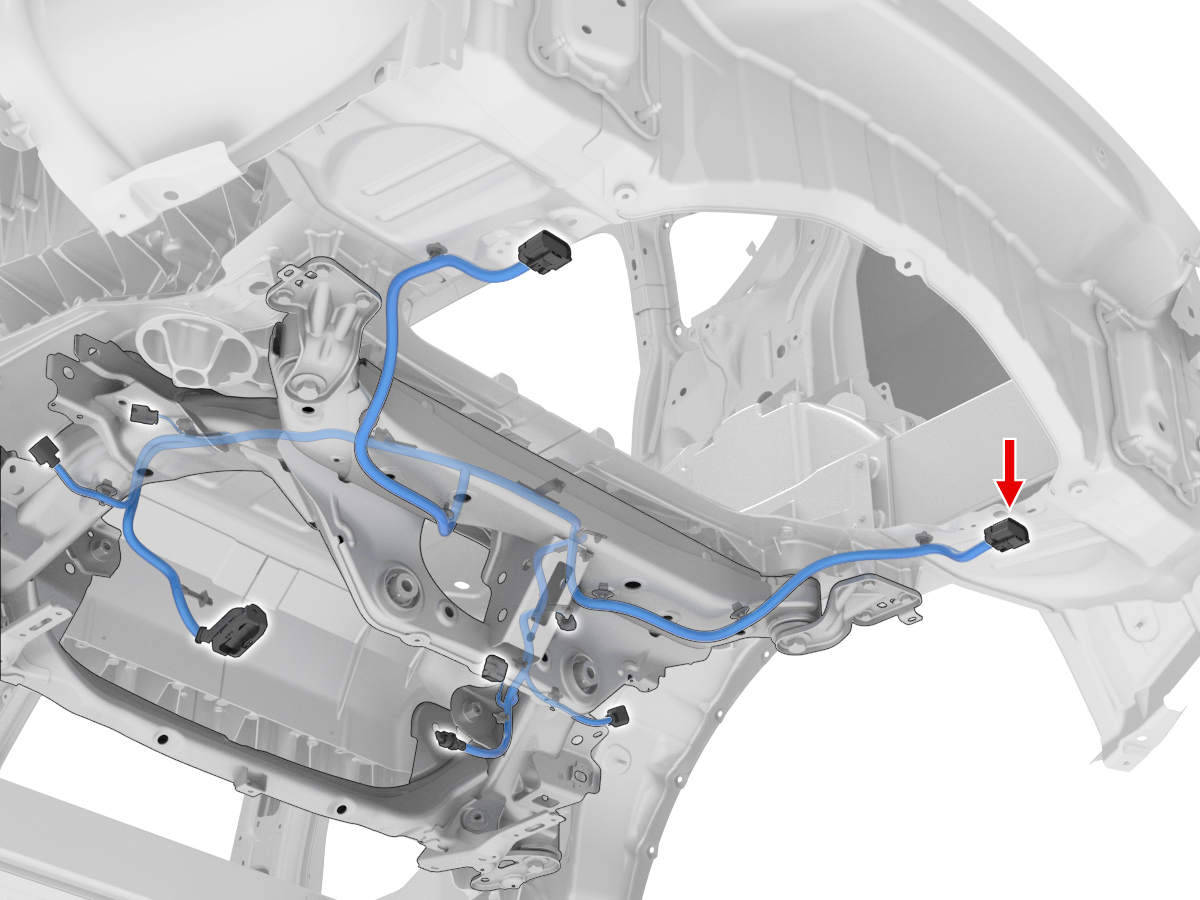

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	MOLEX	33012-3004	1.5x0.8F	TN	0.35	TESLA	MAT-120-240	X156	1
3	MOLEX	33012-3004	1.5x0.8F	GN	0.35	TESLA	MAT-120-240	X156	2
4	MOLEX	33012-3004	1.5x0.8F	WH	0.35	TESLA	MAT-120-240	X157	1
5	MOLEX	33012-3004	1.5x0.8F	VT	0.35	TESLA	MAT-120-240	X157	2
6	MOLEX	33012-3004	1.5x0.8F	BU/WH	0.35	TESLA	MAT-120-240	X090	12
7	MOLEX	33012-3004	1.5x0.8F	BU	0.35	TESLA	MAT-120-240	X090	2
8	MOLEX	33012-3002	1.5x0.8F	BK	1.00	TESLA	MAT-120-240	X092	3
9
10
11	MOLEX	33012-3004	1.5x0.8F	GY	0.35	TESLA	MAT-120-240	X157A	2
12	MOLEX	33012-3004	1.5x0.8F	YE	0.35	TESLA	MAT-120-240	X157A	1
13
14	MOLEX	33012-3004	1.5x0.8F	BK	0.35	TESLA	MAT-120-240	X090	13
15	MOLEX	33012-3004	1.5x0.8F	RD	0.35	TESLA	MAT-120-240	X090	3
16	MOLEX	33012-3002	1.5x0.8F	RD	1.00	TESLA	MAT-120-240	X092	1
