X615R

Tesla Part Number
1075477-00-B
Connector
DELPHI 13597381
Color
BN

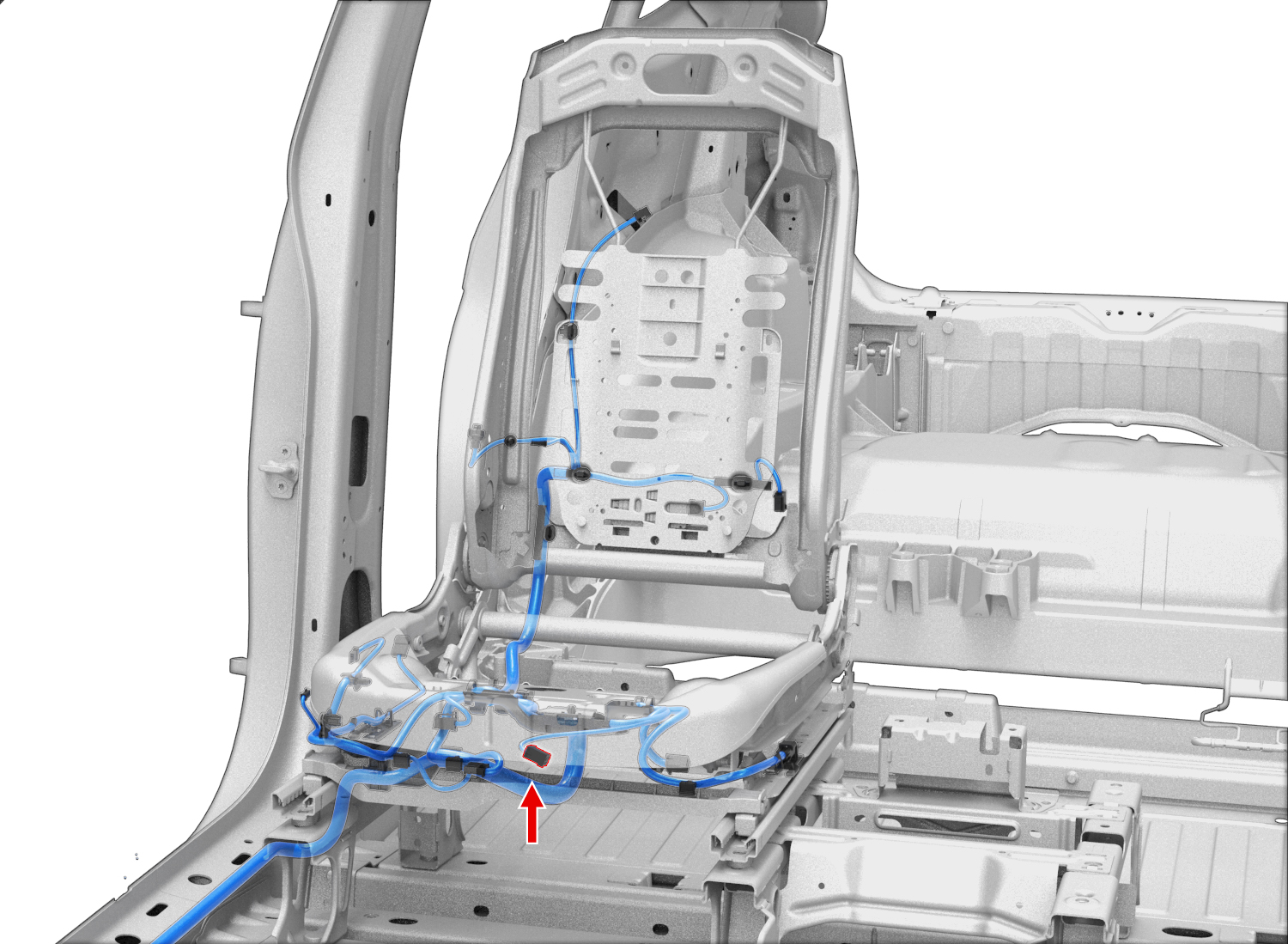

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP968678-22.8x0.6FRD0.35X05248
2AMP5-928999-10.63x0.63FBN0.35X05222
3AMP968678-22.8x0.6FVT0.35X05228
4AMP5-928999-10.63x0.63FBU0.35X05238
