X051

Tesla Part Number

1906766-01-A

Connector

DELPHI 35663317

Color

GY

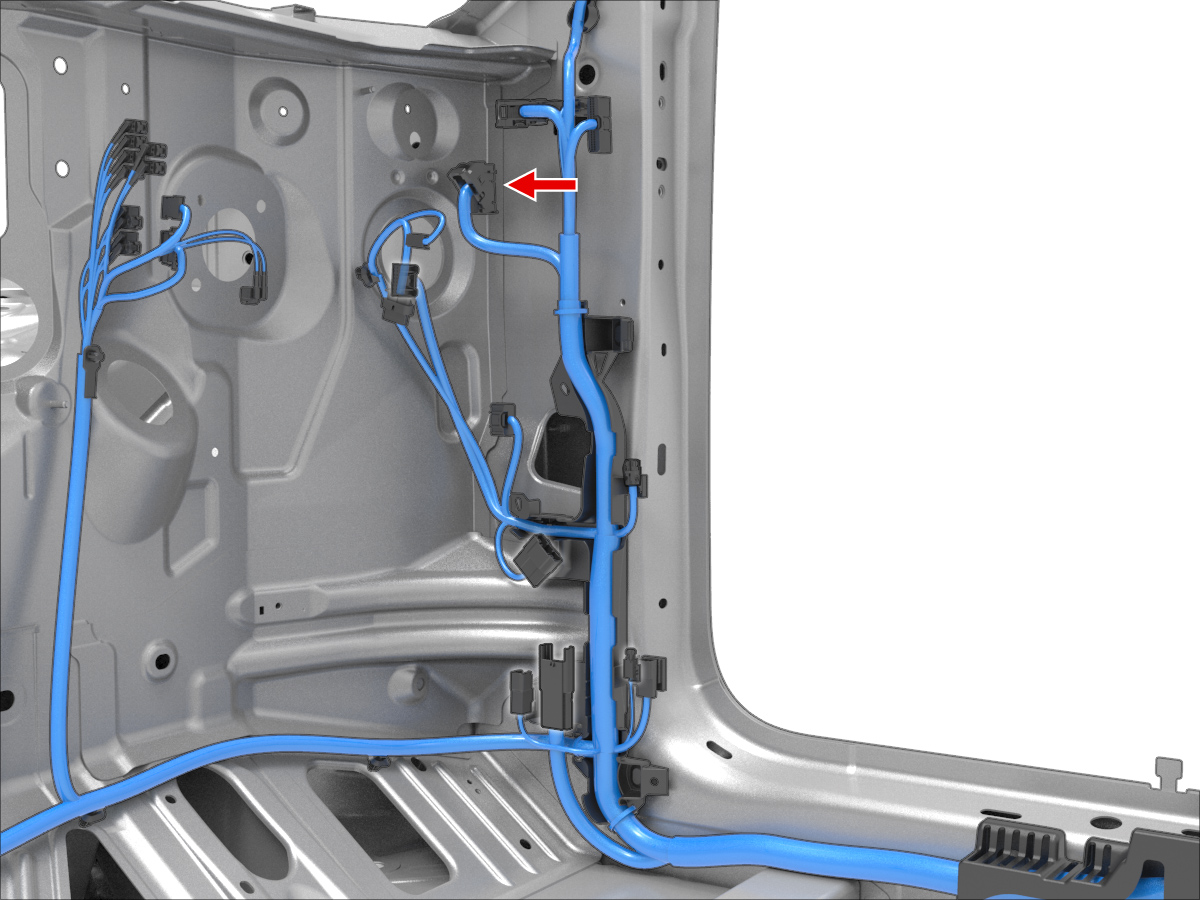

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50			X926M	2
2	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X926M	1
3	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X952M	16
4	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X163A	3
5	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X163A	4
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X926M	3
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X962M	5
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X962M	6
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X949M	12
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X486	3
11	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X926M	22
12	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X175	5
13	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X179	2
14	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X935M	30
15	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X171	8
16	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00			X171	7
17	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X960M	5
18	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X961M	11
19	SUMITOMO	8240-0214	1.5x0.64F	YE/WH	2.00			X561	2
20	SUMITOMO	8240-0214	1.5x0.64F	GN/WH	2.00			X560	8
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926M	23
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X926M	4
23	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X926M	11
24	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X949M	9
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X926M	7
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X962M	2
27	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X926M	20
28	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X175	6
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X179	3
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935M	31
31	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X175	9
32	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X175	10
33	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X175	3
34	SUMITOMO	8240-0215	1.5x0.64F	TN	0.50			X175	4
35	SUMITOMO	8240-0214	1.5x0.64F	BU/WH	2.00			X561	1
36	SUMITOMO	8240-0214	1.5x0.64F	VT/WH	2.00			X560	7
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X908F	2
38	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X949M	8
39	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X949M	4
40	unused
41	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X949M	10
42	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X098	12
43	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X908F	16
44	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X926M	17
45	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X494	1
