X167

Tesla Part Number

1496690-00-A

Connector

DELPHI 35020435

Color

BK

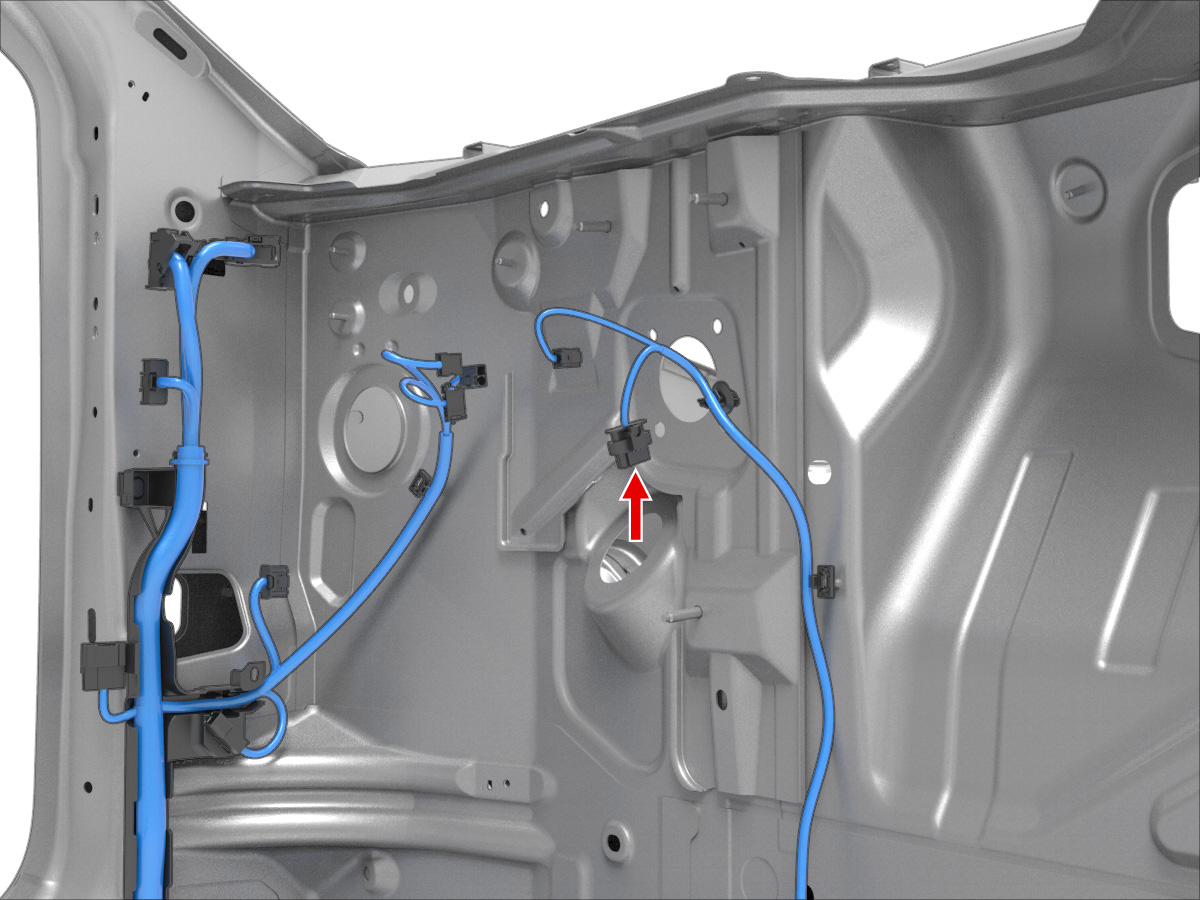

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13959119	1.2x0.6FS	TN	0.35	DELPHI	13887349	X908M	11
2	DELPHI	13959119	1.2x0.6FS	BU	0.35	DELPHI	13887349	X908M	12
3	DELPHI	13959119	1.2x0.6FS	VT	0.35	DELPHI	13887349	X908M	13
4	DELPHI	13959119	1.2x0.6FS	WH	0.35	DELPHI	13887349	X908M	10
5	DELPHI	13959119	1.2x0.6FS	YE	0.35	DELPHI	13887349	X908M	9
6	DELPHI	13959119	1.2x0.6FS	RD	0.35	DELPHI	13887349	X908M	8
