X560

Tesla Part Number

1042593-00-A

Connector

SUMITOMO 6098-5713

Color

WH

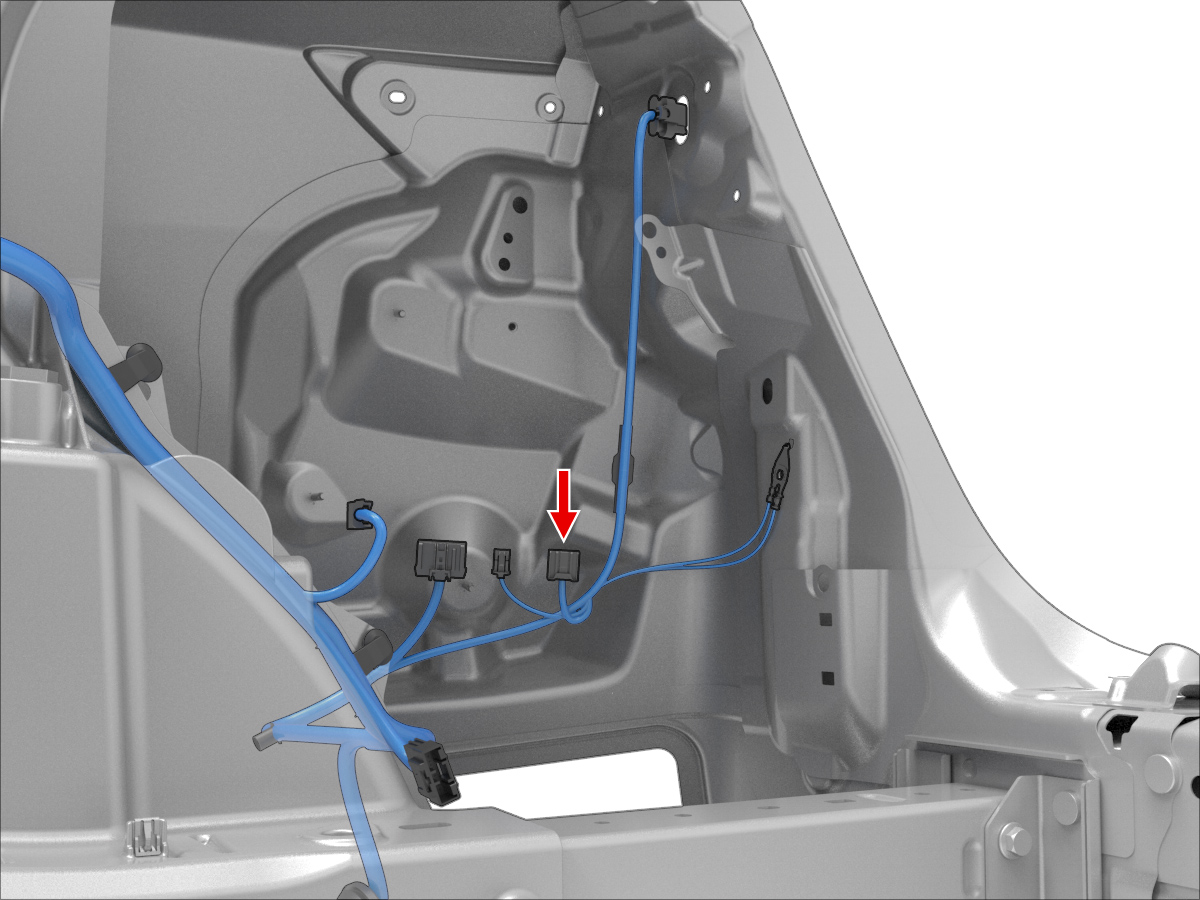

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X935M	11
2	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X935M	10
3	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X926M	24
4	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X926M	25
5	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X953M	2
6	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X953M	1
7	SUMITOMO	8240-0214	1.5x0.64F	VT/WH	2.00			X051	36
8	SUMITOMO	8240-0214	1.5x0.64F	GN/WH	2.00			X051	20
9	SUMITOMO	8240-0214	1.5x0.64F	GN	2.00			X935M	16
10	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X935M	17
11	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X953M	4
12	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X953M	3
