X935F

Tesla Part Number

1517048-00-A

Connector

YAZAKI 7289-4104-40

Color

GY

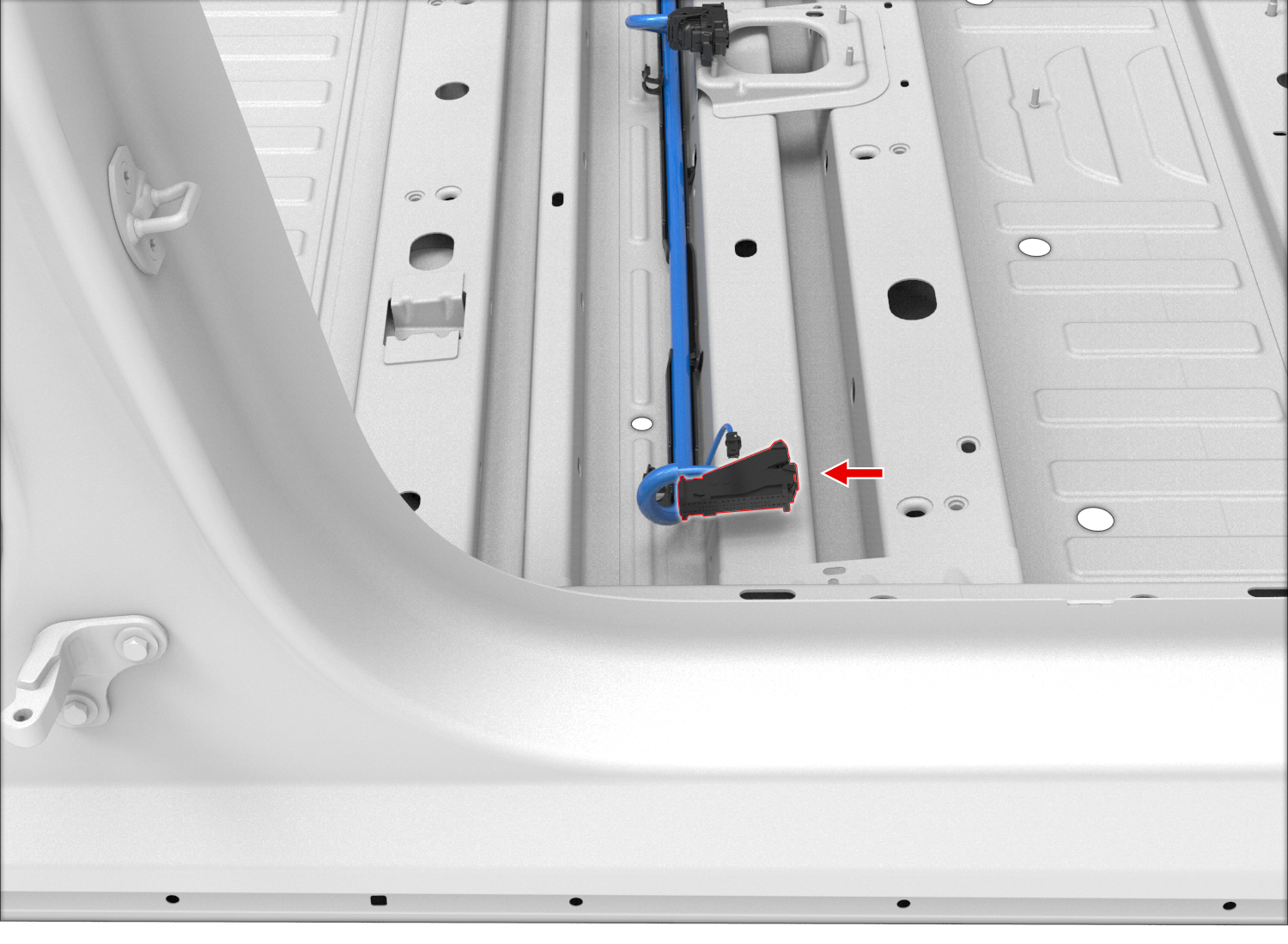

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00			X031	34
2	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X031	33
3	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X039	15
4	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X039	14
5	SUMITOMO	8240-0215	1.5x0.64F	GN	0.50			X981M	2
6	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X981M	3
7	unused
8	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50			X981M	13
9	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50			X981M	14
10	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X924M	24
11	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50			X924M	25
12	unused
13	unused
14	SUMITOMO	8240-0215	1.5x0.64F	GN	0.35			X201	1
15	SUMITOMO	8240-0215	1.5x0.64F	WH	0.35			X201	2
16	SUMITOMO	8240-0214	1.5x0.64F	GN	2.00			X031	36
17	SUMITOMO	8240-0214	1.5x0.64F	VT	2.00			X031	35
18	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X162A	1
19	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X162A	2
20	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	42
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X201	41
22	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X201	10
23	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	9
24	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X581	1
25	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X581	2
26	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X201	38
27	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X201	37
28	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X096	7
29	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X096	8
30	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X031	43
31	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X031	42
32	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X096	5
33	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X030A	25
34	unused
35	unused
36	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X039	26
37	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X039	27
38	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X030A	24
39	unused
40	SUMITOMO	8240-0215	1.5x0.64F	GY	0.35			X031	10
41	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X031	11
42	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X201	19
43	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	20
44	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X039	20
45	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X039	21
46	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X039	18
47	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X039	19
48	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X030A	27
49	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X096	6
50	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X201	56
51	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X031	26
52	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X030A	29
53	unused
54	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X030A	20
55	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X201	16
56	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X201	15
57	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X031	27
58	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X030A	31
59	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X039	23
60	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X039	24
61	SUMITOMO	8240-0215	1.5x0.64F	YE	0.35			X030A	21
62	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X030B	10
63	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00			X921F	9
